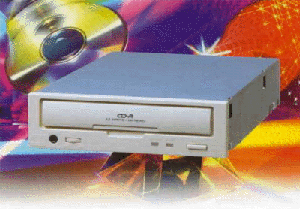

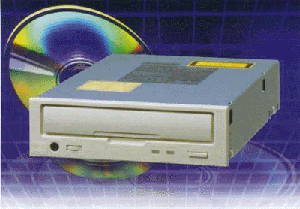

XR-W2020/XR-W2022(English)

XR-W2020 XR-W2022

- High-speed 6x read capability with high-stability 2x write capability

- Compatible with Orange Book Part II-accommodating a variety of CD formats

- Large-capacity buffer supports greater application flexibility

- Supports various writing methods-Disc-At Once, Multi-Session, Track-At-Once, and Packet Writing (suitable for backup)

- "Running OPC" circuit automatically optimizes laser power to ensure consistent recording

- New "Wrire Strategy" circuit optimizes writing capability for both cyanine and phtalocyanine substrates

Hardware specifications

Signal Interface SCSI-2

Buffer Size 1MB

Data Transfer Rate normal speed : 150KB/sec

double speed : 300KB/sec

6x speed : 900KB/sec (Read Only)

Data Transfer Rate(SCSI Bus) 5MB/sec.max(asynchronous mode)

10MB/sec.max(synchronous mode)

MTBF 150,000H

Environment Conditions Operating : 5℃ to 40℃

Non-operating : -10℃ to 55℃

Rated voltage DC5V±5%

DC12V±10%

Power Consumption Less Than 10W(idling)

Dimentions(W×H×D) 149.1×43×208mm

Weight 1.0kg

Loading Tray

We are in no way associated with JVC or Victor, or any Brands Advertised,
this site has been rebuilt from archive to allow legacy support for users
of discontinued Devices. All rights reserved to original creators
Redundant Links have been removed or replaced
Site has been translated to the best of our abilities.

Hardware specifications
Signal Interface	SCSI-2
Buffer Size	1MB
Data Transfer Rate	normal speed : 150KB/sec
	double speed : 300KB/sec
	6x speed : 900KB/sec (Read Only)
Data Transfer Rate(SCSI Bus)	5MB/sec.max(asynchronous mode)
Data Transfer Rate(SCSI Bus)	10MB/sec.max(synchronous mode)
MTBF	150,000H
Environment Conditions	Operating : 5℃ to 40℃
Environment Conditions	Non-operating : -10℃ to 55℃
Rated voltage	DC5V±5%
Rated voltage	DC12V±10%
Power Consumption	Less Than 10W(idling)
Dimentions(W×H×D)	149.1×43×208mm
Weight	1.0kg
Loading	Tray
