The high-resolution 1/3 type Interline Transfer CCD with 380,000 effective pixels reproduces superbly detailed images in true color.
Produces high-quality images in the Motion-JPEG format with resolution of up to 640 x 480 pixels and a maximum frame rate of 30 fps.
Simply connect with a LAN cable on the Ethernet network and the camera is activated and can be controlled via connected PCs.
*PoE enabled switch or power injector is required for PoE operation.
Alarms can be activated based on motion within a defined area. Motion detection can also start video recording on a connected computer.
Provides higher sensitivity under low illumination. When the Easy day/night is set to ON, minimum illumination is 0.4lx F1.2 (25IRE).
The VN-C20U features a built-in web server that allows you to connect your surveillance system directly to the Internet without having to route it through a dedicated web server. This allows you to deliver high-quality, real-time images to any Internet-connected computer in the world, giving you unlimited flexibility.

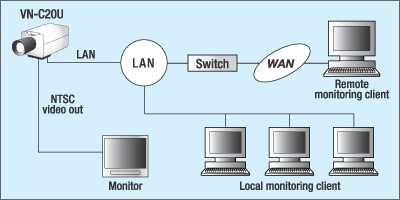

The VN-C20U features a hybrid design with both an IP output and a Monitor video output which produces a picture equivalent to an analog camera, and allows simultaneous output of both.
- Multicasting capability
- FTP client/server function
- 10Base-T/100Base-TX/Full/Half/auto negotiation
By installing the VN-C20U's built-in viewer on your PC, streaming camera images can be monitored with the Internet Explorer. Snapshot recording, alarm signal reception, and various settings are also possible with the viewer.Notes:
- The VN-C20U's built-in viewer does not have a recording function.
- Compatible multi-camera browser VN-RS800U will be available in August 2006.
Initial setup is easily achieved by Internet Explorer. Various operating parameters can be similarly adjusted.
Settings for camera ID, iris, AGC, white balance, easy day/night, etc.
Settings for frame size, picture quality, frame rate, etc.
Settings for up to 5 actions when there is an alarm.
The network camera shall be a JVC Model VN-C20U or equivalent. The VN-C20U camera shall incorporate a 1/3" CCD image device, 380,000 effective pixels with built-in complementary color filter for accurate color with no image lag or distortion. The network camera lens mount configuration shall accept both C and CS mount lenses, as well as DC Auto Iris lenses. The network camera shall produce JPEG compression, picture sizes of 640x480, 320x240 & 160x120, and Motion-JPEG compression, picture sizes of 640x480 and 320x240 that transfer a frame rate of 30fps for smooth motion pictures and a signal to noise ratio of 50dB for sharp pictures. The network camera shall have programmable IP address that allows install multiple units in the same LAN environment. The network camera shall have a built-in Web Server that allows the camera to connect to the internet directly without a computer. The network camera shall feature a FTP server capability for storage of user-designed web pages. The network camera shall feature NAT/IP Masquerade that multiple VN-C20Us can be connected to a NAT/IP Masquerade compatible router and share a single IP address. The network camera shall feature a pre/post alarm recording allows record 30 seconds of images before trigger alarm recording and after ended alarm trigger. The network camera shall feature a motion detection allows indicates any movement in a programmed grid area and detects by sensitivity or minimum area by 8x8 pixels. The network camera shall feature an Easy day/night function removing color signal automatically (ON/OFF) together AGC for increased sensitivity in low light conditions. The network camera shall feature an analog monitor output that allows easy adjustment at installation site. The network camera shall feature an Automatic Gain Control (AGC) circuit provide clear images in low light conditions. The network camera shall deliver a usable color picture at a scene illumination of 1.0 lx. The network camera shall feature Automatic White Balance for accurate color reproduction or Manual adjustment for flexible operation in a wide range of environment. The network camera shall have user-friendly menu set up and adjustment of Auto IRIS level, BLC, Compression level, Color saturation level, AWB/Manual, AGC, programmable Camera ID, Time & Date, adjustable bandwidth between 64Kbps to 2Mbps and full function control by provided controller & Viewing software and thru Web browser. The network camera shall incorporate a TCP/IP, UDP, HTTP, FTP, ICMP, ARP, RTP, DHCP, NTP, SMTP, IGMP, and DSCP protocols for various network applications. The provided controller & viewing software shall feature a recording and playback, snapshot functions allow for PC surveillance system. The network camera shall incorporate a 10 Base-T/100 Base-Tx Ethernet, IEEE802.3, IEEE802.3u and IEEE802.3af standard communication. The maximum length of control data cable (CAT5) shall be 300 feet allows point to point connection and extension can be made thru a switching Hub. Power source shall be PoE (Power over Ethernet: IEEE802.3af) compliant, 1.2A, AC24V. The network camera's dimensions shall not exceed 2-7/8" (H) x 2-5/8" (W) x 5-7/8" (D). The unit shall be UL listed.
 |
| CAMERA |
| Image device |
1/3 type IT CCD |
| Number of effective pixels |
380,000 (768H x 494V) |
| Minimum illumination (typical) |
Color mode: |
2.5 lx, F1.2, AGC on, 50 IRE (50% video)
1.0 lx, F1.2, AGC on, 25 IRE (25% video) |
| B&W mode: |
1.0 lx, F1.2, AGC on, 50 IRE (50% video), Easy day/night on
0.4 lx, F1.2, AGC on, 25 IRE (25% video), Easy day/night on |
| S/N ratio (typical) |
50 dB, AGC off |
| Horizontal resolution (typical) |
480 TV lines (analog video out), 400 TV lines (network) |
| Lens mount |
C/CS |
| White balance |
ATW/Manual |
| Easy day/night |
Yes (on/off) |
VIDEO/ENCODE |
| Video output |
Composite video signal (NTSC): 1.0 V(p-p), 75 ohms (BNC) |
| Video compression |
JPEG (7 level compression) |
| Image size |
VGA/QVGA |
Frame rate (max.)
<requirement> |
VGA 30 fps
<30 KByte, Motion detection off> |
| Motion detection |
Yes |
| Constant bit rate |
Yes |
| Pre/Post alarm buffer |
Yes (8 MB) |
GENERAL
|
| Alarms |
Input x 2, Output x 2 |
| Power supply |
PoE (Power over Ethernet, IEEE802.3af compliant) /AC 24V |
| Power consumption |
0.5 A (max.) |
| Operating temperature (recommended) |
0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions (W x H x D) |
70 mm x 55 mm x 138 mm (2-7/8" x 2-5/8" x 5-7/8") |
| Weight |
560 g (1.24 lbs.) |
NETWORK |
| Network interface |
RJ-45, 10Base-T/100Base-TX auto negotiation |
| LAN |
IEEE802.3/IEEE802.3u/IEEE802.3af |
| Protocol |
TCP/IP, UDP/IP, HTTP, FTP, ICMP, ARP, DHCP, NTP, SMTP, DSCP |
| IP filter (deny/allow access from specified IP) |
Yes |
| Access protection |
3 level passwords |
| Multicast |
Yes |
SYSTEM REQUIREMENT (RECOMMENDED) |
| OS |
Windows® XP Pro (SP2) / Home (SP2) |
| Web browser |
Internet Explorer ver. 6.0 |
| CPU |
Pentium™4, 1.5 GHz |
| Memory |
1 GB |
| HDD space |
20 MB |
| Display/video card |
1,024 x 768 pixels, True color (24-bit or 32-bit) VRAM 256 MB |
|
|  |
|
