Lets you display multiple camera images in up to16 windows either in separate windows or in a single screen. You can assign up to 16 cameras to each window, allowing you to register a total of up to 256 cameras. Sequential Switching automatically switches the source camera at designated intervals, making it easy to monitor multiple camera images.

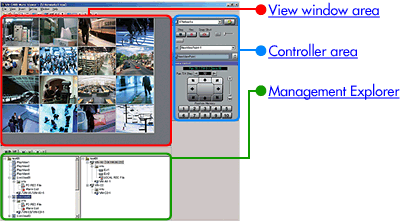

Our exclusive Management Explorer is now even easier to use. A new user-friendly interface with camera view window and controller windows integrated in a single screen enables you to monitor camera images, control operations, check camera status and other data - all with simple point-and-click operation.
With a wider variety of recording and playback functions to choose from, the VN-S400U gives you more flexibility and greater reliability. For recurrent recording at specified times, you can use Timer Recording with both weekly and daily setting options available. For security purposes, you can use Timelapse Recording for reliable long-duration recording or Alarm Recording to capture alarm events in detail. Also provided is an E-mail Alert Function that automatically sends e-mail with attached JPEG image to a preset address whenever an alarm is detected.
Playback is easy and convenient, too. You can easily access desired recorded scenes by specifying a camera number or alarm index, or you can designate a specific section and extract it from the recordings.

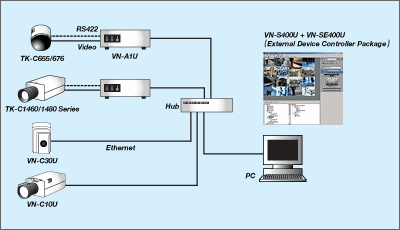

| The VN-S400's expandable, versatile design makes it much more than just a controller for designated JVC V.NETWORKS cameras. Now you can control different types of cameras and other devices through a single control window. With the VN-A1U Network Encoder connected, you can connect JVC analog CCTV cameras such as the TK-C1480 or TK-C655/676. External Device Control Package VN-SE400U is available for Free Download from Support page. |
 |
 |
Fully compatible with the latest JVC V.NETWORKS models such as VN-C10U, VN-C30U or VN-A1U, the VN-S400U supports the powerful features of these models, including Pan/Tilt/Position Memory for VN-C30U, and Multi-Casting capability and Motion Detection function for VN-C10U/VN-A1U.
|
|
| Compatible device |
Model |
Firmware version |
VN-C10U
VN-A1U
VN-C30U (JPEG mode only)
VN-C1U*
VN-C2U*
VN-C3U* |
Ver. 1.2 or later
Ver. 2.0 or later
Ver. 1.7 or later
Ver. 4.0 or later
Ver. 4.0 or later
Ver. 2.1 or later |
| Number of camera windows that can be displayed simultaneously |
16 (max.) |
| Number of cameras that can be registered |
256 (max.) |
| Number of units than can be connected for sequential switching |
16 (max.) |
| System requirements |
OS |
Windows® 2000 Professional (SP3) / XP Professional (SP1) / XP Home Edition (SP1) |
| CPU |
Pentium III 1 GHz or higher |
| Memory |
256 MB or more |
| Hard disk space |
20 MB or more (additional 200 MB required for recording) |
| Display |
1024 x 768 pixels or more (1280 x 1024 recommended), True Color (24 bit) or more |
| LAN card |
100Base-T/TX |
| Browser |
Internet Explorer 6.0 |
| Other |
Microsoft® DirectX 8.1 retail runtime package, WMPCDCS8.exe required |
| * |
VN-C1U/C2U/C3U has already been discontinued. |
NOTE: To ensure continued, uninterrupted use of your VN-S400U, please access our online activation site and complete user registration within 30 days of installation.
|
|
