A connection of RS232 terminal with JLIP device

It is possible to control a JLIP device with the PC connection kit
from JVC by a common serial interface of RS232.

The cable is included with a PC connection kit of some camcorders.
It is also called as Part #QAM0099-00x. ( As "#QAM0099-002" in U.S. )
It is available from "JVC store". (Sorry for Only in U.S. )
In this site, you can just find it by searching Part # "QAM0099-002"
at "Search for Accessories".

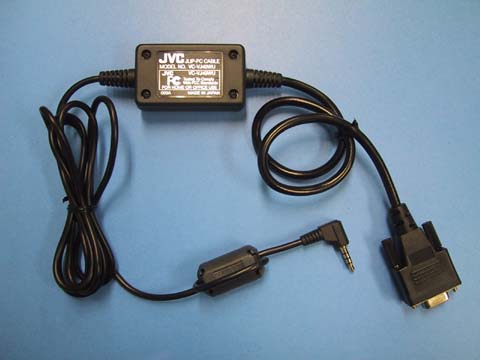

(1)JLIP-PC cable (VC-VJ49Wx)
This cable has one JLIP plug, and one PC connection plug.
It is possible to connect only one JLIP device to one RS232 terminal of the controller with it.

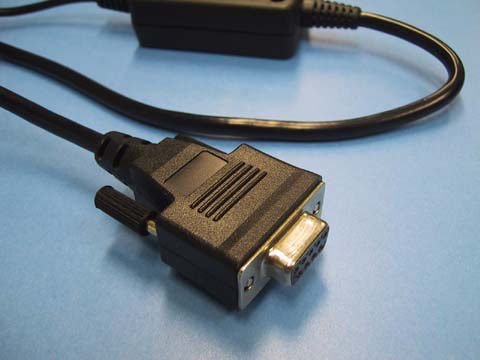

(2)RS232 terminal
This cable has D-sub 9 female connector as RS232 terminal.
This cable is so simple. And its power is distributed from RS232 terminal of the controller.
A little part of controller devices does not have enough power to work
this cable circuit. If then, please use HS-V1 the JLIP-PC connection kit.

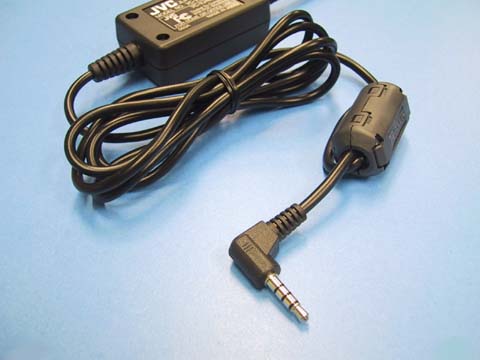

(3)JLIP terminal
This plug is for connecting JLIP terminal of VCR.
