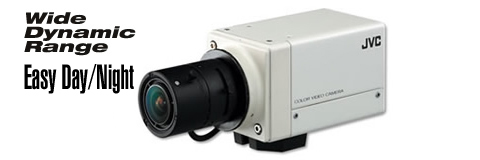

WIDE DYNAMIC RANGE CAMERA
TK-WD310E(B) |
 |
| The TK-WD310E(B) high-resolution camera has been especially designed to capture clear, easy-to-view images even when there is bright backlight thanks to features like wide dynamic range and 14-bit digital processing. |
FEATURES
- 1/3 type digital image device with wide dynamic range (WDR)
- Innovative 14-bit DSP
- High-speed, automatic 5-level exposure control for each pixel
- 480 TV lines of horizontal resolution
- Easy day/night function: chroma on/off
- Programmable camera menu system, operated by selector
- Automatic tracking white balance (ATW), single push
and manual
- Sync systems INT/Line lock
- 24-characters camera title
- Video/DC iris control
- Ultra-compact camera body
- AC 24 V/DC 12 V power supply
|
|
MULTI-SAMPLING SYSTEM WIDE DYNAMIC RANGE FUNCTION |
| TK-WD310E(B) automatically adjust luminance by pixel with 14-bit digital processing as well as implement 5-Level multi-sampling, in order to realize an accurate colour reproduction. |

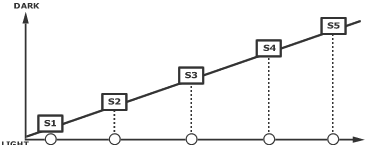

5-level multi-sampling
|
5-level multi-sampling image |
| ACCURATE COLOUR REPRODUCION
|
| Incorporating an advanced WDR digital imaging device, the TK-WD310E(B) is able to reproduce clear images without smear. Even in very bright conditions, images boast vivid colour, sharp contrast, and no halation.
|
|
| SPECIFICATIONS |
|
| Image device |
1/3 type WDR digital image device |
| Number of effective pixels |
380,000 Pixels (720H x 540V) |
| Sync system |
Internal, Line lock |
| Scanning frequency |
15.625 kHz (H), 50.0 Hz (V) |
| Horizontal resolution |
480 TV lines |
| Video output |
Composite video signal: 1.0 V (p-p), 75 ohms (BNC) |
| Video S/N ratio |
50 dB (AGC off) |
Minimum illumination (typ.)
|
Colour mode
|
| B&W mode |
|
|
0.95 lx (F1.2, AGC HIGH, 25%)
1.9 lx (F1.2, AGC HIGH, 50%) |
0.25 lx (F1.2, AGC Easy D/N, 25%)
0.5 lx (F1.2, AGC Easy D/N, 50%) |
|
| Iris |
Video iris/DC iris |
| White balance |
ATW/AWB/Manual |
| ATW colour temp. range |
2,500K to 10,000K |
| Lens mount |
CS mount |
| Power supply |
AC 24 V (50 Hz/60 Hz)/DC 12 V |
| Power consumption |
400 mA |
| Operating temperature |
-10°C to 50°C (14°F to 122°F),
0°C to 40°C (32°F to 140°F) (recommended) |
| Dimensions (W x H x D) |
50 mm x 57.5 mm x 107 mm |
| Weight |
330 g |
| Accessory |
Ferrite core for lens cable |
Notes:
- The WDR function will not operate with AGC or slow shutter mode engaged.
- In very dark conditions the image quality may suffer slight deterioration.
- Under fluorescent lighting, the colour balance may vary slightly.
- All manufacturer utilising this technology will experience similar phenomenon.
|
|
