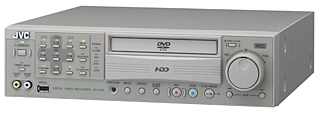

DIGITAL VIDEO RECORDER
VR-509E (9-ch) |
 |
| With its built-in 320GB hard disk drive, DVD-RW drive and MPEG-2 compression, JVC's VR-509E digital video recorder is equipped to handle the most demanding surveillance requirements. |
FEATURES
- MPEG-2 compression
- High-density recording
- Live playback split 1/4/6/9
- Large-capacity HDD & external HDD connection
- DVD drive for easy data export
- Simultaneous recording/playback
- Timer recording and alarm recording
- Emergency recording
- Pre-alarm recording
- Motion detection function
- Jog/Shuttle dial
- Time/date stamp function
- User guidance function
- Easy maintenance
- 2x and 4x display
- Digital watermark
- E-mail notification
- Hard disk mirroring
- NTP client function
- Covert channel function
- Ethernet interface
- Range of extra inputs and outputs
- Compact chassis design (340 mm wide)
|
|

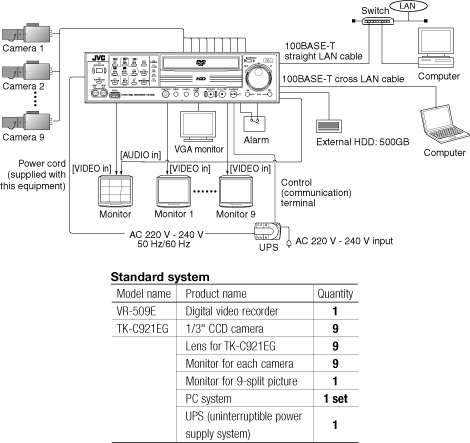

VR-509E SYSTEM CONFIGURATION |

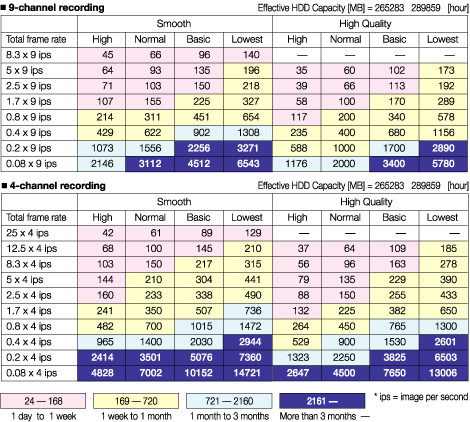

VR-509E RECORDING TIME LIST |
| SPECIFICATIONS |
|
| VIDEO SIGNAL |
|
| Video input |
9 lines (supports asynchronous input) |
| Video output |
9 lines (through)
Video output x3 lines (front x1, rear x2) |
| Line input |
1.0 V (p-p), 75 ohms (BNC unbalanced) |
| Line output |
1.0 V (p-p), 75 ohms (BNC unbalanced) |
| Number of effective pixels |
720 x 288 (HIGH-QUALITY)
360 x 288 (SMOOTH) |
| AUDIO SIGNAL |
|
| Audio input |
2 lines |
| Audio output |
2 lines (front x1, rear x1) |
| Line input level |
-8 dBs, 50 k ohms (unbalanced) |
| Line output level |
-8 dBs, 1 k ohms (unbalanced) |
| Frequency |
100 Hz to 10 kHz |
| Audio compression |
12 kHz sampling, L-PCM |
| GENERAL |
|
| Video compression |
MPEG-2 |
| Capacity |
160GB x2* |
| Interface |
RS-232C, SERIAL, Ethernet |
| Power supply |
AC 220 - 240 V (50 Hz/60 Hz) |
| Power consumption |
0.5 A |
| Operating temperature |
5°C to 40°C |
| Storage temperature |
-20°C to 60°C |
| Operating humidity |
30% to 80 %
|
| Weight |
7 kg |
| ACCESSORIES |
Instructions x1, Power cord x2 |
| * |
Since the same data is recorded on each of the 160GB HDDs when the mirroring function is
used, maximum recording capacity is 160GB (not 320GB). |
|
