| Video |
Input |

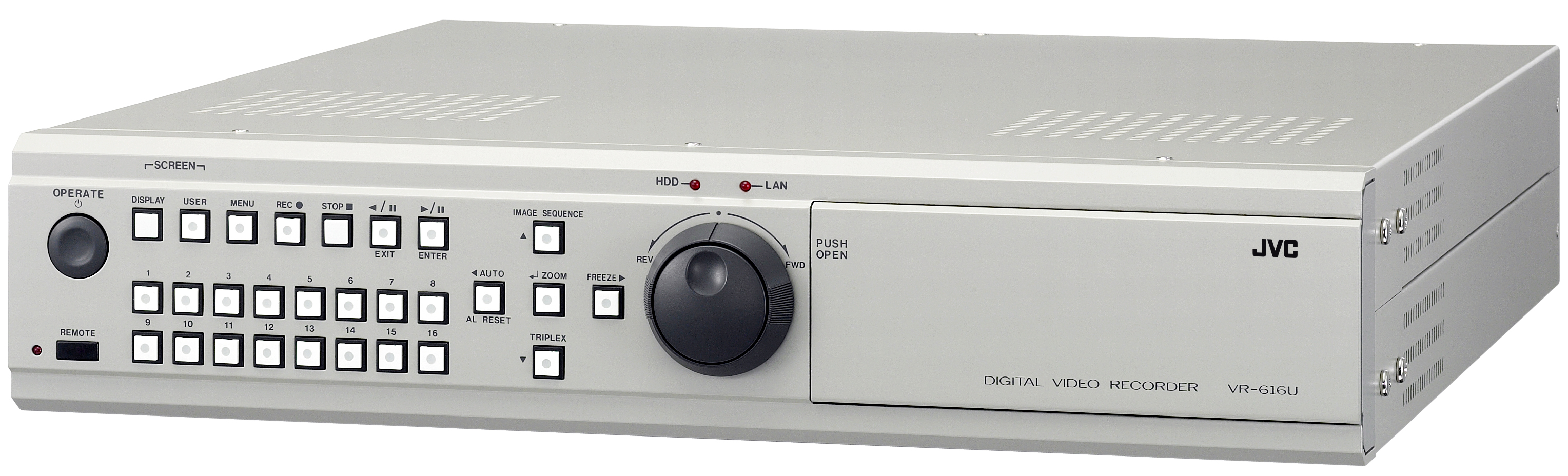

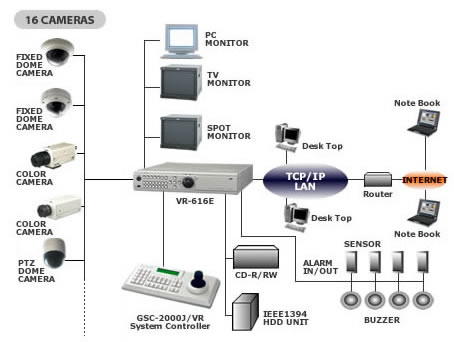

16-ch (BNC) (VR-616E)

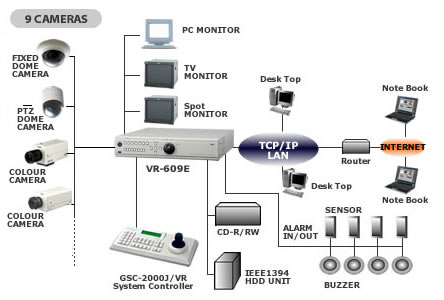

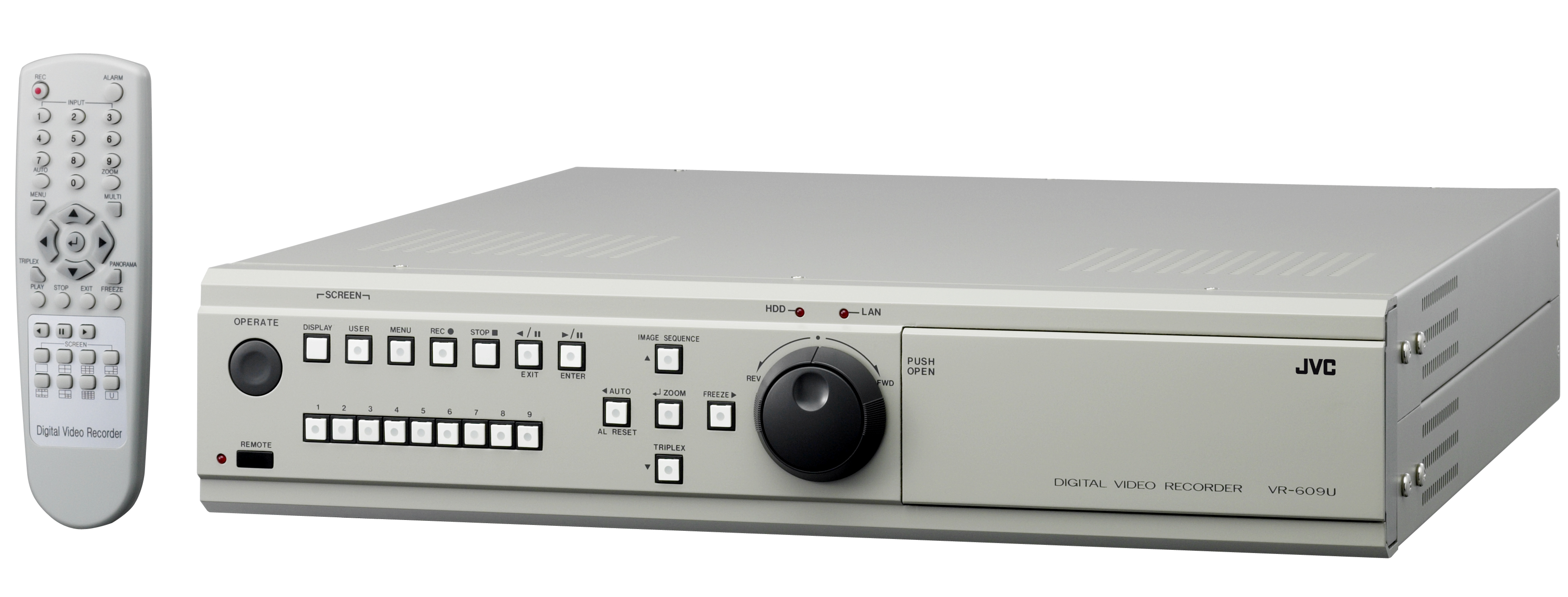

9-ch (BNC) (VR-609E) |
| Audio |
Input/output |
1-ch (Mono RCA Jack) |
| Display |
Speed
Split screen |
50 fps
1, 4, 6, 7, 9, 10, 16, PIP (VR-616E)
1, 4, 6, 7, 9, PIP (VR-609E) |
| Recording |
Speed
Resolution
Compression method
Image quality
Mode |
50 fps (Max.) 25 fps/1-ch
720 x 288
WAVELET
Selectable 7 steps
Motion Detection, Sensor, Schedule |
| Playback |
Display
Search mode |
1, 4, 9, 16 (VR-616E)
1, 4, 9 (VR-609E)
Date, Time, Channel, Event |
| Monitor |
Output |
2-Monitor (BNC)
1-Spot (BNC)
1 VGA
1 S-Video |
| Control |
Sensor input
Relay output
Pan/Tilt/Zoom |
16 points (VR-616E), 9 points (VR-609E)
4 points
16-ch (VR-616E), 9-ch (VR-609E) |
| Network |
Transmission speed
Remote view
Protocol |
Real-time
Via Web Browser/Bundled software
TCP/IP |
| Others |
Watch dog
O/S
Power supply |
Self-recover
Embedded Linux
AC 220 V to 240 V, 50/60 Hz |
Built-in
Device |
HDD
Removable rack
USB (1.0)
IEEE 1394
LAN (RJ-45) |
240 GB
1 pcs
2 ports
1 port
10Base-T/100Base-TX |
