SXGA digital image capture with dual output, IEEE1394 (IIDC) and RGB analogue, for industrial, scientific and medical use

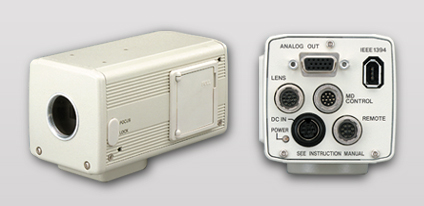

The KY-F1030 has been designed to give flexibility in operation, whilst always meeting the demand for SXGA (1360 x 1024) high resolution imaging. Its dual output capability provides an IEEE1394, single cable PC system as well as an RGB capture card solution.

1360 x 1024 SXGA resolution camera (equivalent to 800 TV lines) 1/2" IT Progressive Scan CCD Effective pixel resolution 1.45 million IEEE1394 high speed transfer provides PC with live, native, uncompressed SXGA images at fast rate of 7.5 fps Global standard digital camera protocol IIDC v1.3 compliant Simple 6-pin IEEE1394 cable solution, embracing image capture, camera and lens* control and DC power, via 6-pin IEEE1394 port on desktop PC 1/2" C-mount fitting, to suit a wide variety of lenses and scopes JVC proprietary colour matrix Extended integration up to 4 seconds or 30 frames (Slow Shutter Mode) External trigger function for Sensor or Flash synchronisation Dual DC power options, either via 12V DC direct input from AC Adaptor or via IEEE1394 6-pin input EN 60601-1 and UL-2601 conformity is achieved when used with separate AC power adaptor AA-P700 Compatible with OHCI type IEEE1394 interfaces for simple connection to laptop or desktop PC Supplied with JVC's proprietary KY-LINK image acquisition software, as part of the bundled KY-WARE software suite (see adjacent box) *For applicable lenses, please contact your local JVC Professional Products office. The KY-F1030U/F75U is supplied with KY-WARE, which contains a number of software solutions: KY-LINK is JVC's proprietary image display, acquisition, and processing application. It features true What You See Is What You Get (WYSIWYG) image preview, and a range of image enhancement, processing and calibration tools. It creates a single-cable solution, where image data, camera control and power can all be transmitted via the IEEE1394 interface. A TWAIN Driver allows image acquisition from within any standard TWAIN-compatible application, such as Adobe Photoshop. A Software Development Kit (SDK) makes it simple for developers to integrate the KY-F1030U/ F75U into custom applications - example source code is included to speed development.

Image device 1/2-inch Interline Transfer CCD Scanning Progressive Total pixels 1.5 million pixels Effective pixels on CCD 1.45 million pixels (H: 1,392 x V: 1,040) Output pixels from CCD 1,360 x 1024 pixels 1,280 x 960 pixels switchable Resolution 800 lines Dynamic range 250% Synchronising system Internal (built-in SSG) Lens mount 1/2-inch C-mount Analogue output signals RGB 0.7V, 75 ohms 7.5 fps Digital video output IEEE1394 6 pins   Protocol IIDC 1394 based Digital Camera Specification, Rev. 1.30   Frame rate 7.5 frames/s Sync output Hs/Vs 3 V(p-p) (low active) Sync On Green [0.3 V(p-p)] Sensitivity F8, 2000 lux (at 1/30 shutter) Gain 0 dB, +6 dB, +12 dB (step) 0 - 12 dB (variable), ALC Electronic shutter STEP 4 sec., 2, 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000, V.Scan, EEI V.SCAN 4.010s. to 1/5906.836s EEI 1s to 2384.7s Dimensions (W x H x D) (excluding connectors) 70 x 64.8 x 125.5 mm 2-13/16 x 2-9/16 x 5 inches Weight 470g/1.03 lbs. Power supply DC 12V (when AA-P700 is used) DC8V to 40V (IEEE1394 power supply) Power consumption (Camera unit only) 8W (when AA-P700 is used, including lens) Operating temperature 0° to 40°C/32° to 104°F Storage temperature -20° to 60°C/-4° to 140°F

Simulated picture The values for weight and dimensions are approximate. Design and specifications subject to change without notice.
