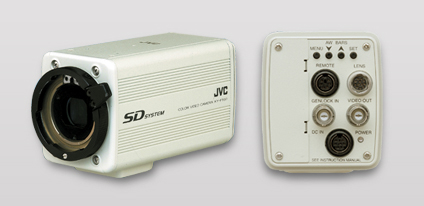

JVC Products IMAGEING CAMERAS KY-F560

Multi-purpose 3-CCD camera featuring 12-bit ADC and 24-bit DSP. A range of accessories allows it to be integrated into a variety of system configurations for use in industrial, broadcast and medical applications.

Thanks to the newly developed 12-bit ADC and 24-bit DSP, this small system camera can provide quality images with excellent colour reproduction and colour separation. Optional expansion accessories such as the SDI output card and the two Studio Adapters allow easy, low-cost system integration into studio and remote applications.

	1/2" 3-CCD colour accuracy (trichromatic prism)

	1/2" bayonet lens mount

	Latest 12-bit ADC and 24-bit DSP for more than 400% dynamic range and ideal gamma correction The latest 12-bit ADCs digitally convert the entire dynamic range of each CCD without distortion and with the finest possible steps. Together with a 24-bit, super fast, multi-stream, parallel processing DSP, highlight handling is dramatically improved and gamma correction is close to perfect, approaching the colour reproduction and shadow detail of a full studio camera.

	Horizontal resolution of 850 TVL and S/N of 64dB (NTSC) and 62dB (PAL)

	F13, 2000 lx sensitivity

	Composite output & Gen-Lock input

	JVC protocol (RS-232C, incl. lens controls)

	Compatible with JVC KY-F32 series options

	Can be expanded to include 26-pin connector and SDI compatibility using optional boards and studio adapters Thanks to open architecture for extended application, digital or analogue studio application can be done with the KA-F5603 Studio Adapter with SDI interface or the KA-F5602 Studio Adapter with analogue video interface. Both studio camera systems can be complemented by the optional large viewfinder, intercom and remote control. Additionally, the KA-F5601 plug-in SDI camera interface can be useful for remote camera application in conjunction with the remote pan & tilt system.

	Remote camera control possible in conjunction with Fujinon pan & tilt head and system controller

Image device		1/2-inch Interline Transfer CCD x 3
Scanning		Interlace
Total pixels		NTSC: 41K pixels (811H x 508V) PAL: 47K pixels (795H x 596V)
Effective pixels on CCD		NTSC: 38K pixels (768H x 494V) PAL: 44K pixels (752H x 582V)
Colour separation system		F1.4 RGB 3-colour separation system
Resolution		Y: 850 lines or more
Registration		0.05% ore less (excluding lens characteristics)
Minimum required illumination		0.7 lx or less (F1.4, LOLUX)
Dynamic range		400% or more
S/N ratio		NTSC: 64 dB or more PAL: 62 dB or more (before signal processing)
Contour correction		Dual-edged
Synchronising system		Internal (built-in SSG)/external (VBS or BB)
Lens mount		1/2-inch bayonet mount
Analogue output signals		Composite: 1 Vp-p, 75 ohms
Digital video output		SDI (w/optional KA-F5601 or KA-F5603)
Sensitivity		F13, 2000 lux
Gain		-3 dB, 0 dB, +3 dB, +6 dB, +9 dB, +12 dB, +15 dB, +18 dB, LOLUX (+30 dB) ALC (0 dB to MAX) NTSC: ALC + EEI (0 dB to 18 dB, approx. 1/60 to 1/240) PAL: ALC + EEI (0 dB to 18 dB, approx. 1/50 to 1/200) V. GAIN (-3 dB to 18 dB, 0.2 dB step)
Electronic shutter	STEP	NTSC: NORMAL, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 PAL: NORMAL, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
	V.SCAN	NTSC: Approx. 1/60 to 1/10000 PAL: Approx. 1/50 to 1/10000
	EEI	NTSC: 1/30 to MAX PAL: 1/25 to MAX
Dimensions (W x H x D) (excluding connectors)		70 x 80 x 152.5 mm 2-13/16 x 3-3/16 x 6 inches
Weight		800g/1.76 lbs.
Power supply		DC 12V (when AA-P700 is used)
Power consumption (Camera unit only)		8 W
Operating temperature		-5° to 40°C/23° to 104°F
Storage temperature		-20° to 60°C/-4° to 140°F
