SXGA digital image capture with SCSI output and live colour preview for industrial and medical image processing

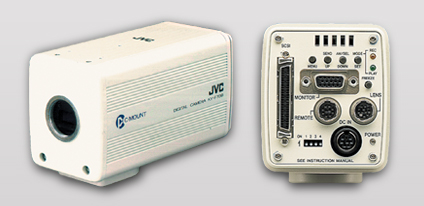

Whether used on a scope or with a lens attached, the KY-F70B delivers still images with excellent high-resolution and colour reproduction. The KY-F70B Digital Imaging System interfaces directly with a PC via SCSI-2 to capture SXGA resolution images, while still offering live colour motion preview in real time. When interfaced with PC capture board, it delivers SXGA resolution images in a wide range of applications.

Square pixel on-chip progressive scan CCDs, each with 1.45 million pixels, totaling 4.35 million Exceeds SXGA resolution with 1360 x 1024 pixels Progressive scan CCD output RGB prism separator and 3-CCD for total colour accuracy C-mount, half inch size fits a wide variety of scopes and lenses Extended integration up to 4 seconds (Slow Shutter Mode) Pixel masking algorithm for optimised image quality Special algorithm for improved S/N ratio User-selectable Syncs: either Separate Syncs or Sync on Green WYSIWYG live preview mode (Live Colour Preview on VGA Monitor) External trigger function for Sensor or Flash Synchronisation EN 60601-1 and UL-2601 conformity is achieved when used with separate AC power adaptor AA-P700 Designed to accommodate applications that use IR illumination, by way of having the IR cut filter externally accessible for swapping out with alternative special JVC quartz filter

Image device 1/2-inch Interline Transfer CCD x 3 Scanning Progressive Total pixels 1.5 million pixels Effective pixels on CCD 1.45 million pixels (H: 1,392 x V: 1,040) Output pixels from CCD 1,360 x 1024 pixels 1,280 x 960 pixels switchable Resolution 1,000 lines Dynamic range 250% Synchronising system Internal (built-in SSG) Lens mount 1/2-inch C-mount Analogue output signals R/G/B 0.7 V(p-p) 75 ohms each SXGA 1360 x 1024 pixels 7.5 frames/sec. VGA: 640 x 480 pixels 60 frames/sec. (Image refresh rate 7.5 frames/sec.) VGA: 640 x 480 pixels 60 frames/sec. (Image refresh rate 30 frames/sec.) Vertical resolution: 240 lines Digital video output SCSI-2 50P half-pitch SCSI connector   Protocol Original Sync output Hs/Vs 3 V(p-p) (low active) Sync On Green [0.3 V(p-p)] Sensitivity F8, 2000 lux (at 1/30 shutter) Gain ISO100, 200, 400 (0 dB, +6 dB, +12 dB) Electronic shutter STEP 4 sec., 2, 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000, V.Scan, EEI V.SCAN 1/30s. to 1/5906.836s EEI 1/7.5s to 1/2384.7s Dimensions (W x H x D) (excluding connectors) 70 x 80 x 150mm 2-13/16 x 3-3/16 x 5-15/16 inches Weight 850g/1.87 lbs. Power supply DC 12V (when AA-P700 is used) DC8V to 40V (IEEE1394 power supply) Power consumption (Camera unit only) 15W (when AA-P700 is used, including lens) Operating temperature 0° to 40°C/32° to 104°F Storage temperature -20° to 60°C/-4° to 140°F

Simulated picture The values for weight and dimensions are approximate. Design and specifications subject to change without notice.
