SXGA digital imaging, excellent colour separation and colour reproduction with IEEE1394 and live image preview

Through its IIDC v1.3 IEEE1394 interface, the KY-F75 transfers high resolution, uncompressed SXGA images at the high speed of 7.5 frames per second. Conforming to strict medical standards, this multi-purpose camera is ideal for applications in a wide range of fields besides medicine, including industrial and scientific research and forensic science.

Square pixel on-chip progressive scan CCDs, each with 1.45 million pixels, totaling 4.35 million Exceeds SXGA resolution with 1360 x 1024 pixels Progressive scan CCD output RGB prism separator and 3-CCD for total colour accuracy C-mount, half inch size fits a wide variety of scopes and lenses Direct digital interface to PC via IEEE1394 IIDC V1.3 subset of IEEE1394 for uncompressed data transmission Live image preview on PC monitor and instantaneous capture Extended integration up to 4 seconds (Slow Shutter Mode) Single cable 6-pin IEEE1394 connection, carrying DC power, image and control signals EN 60601-1 and UL-2601 conformity is achieved when used with separate AC power adaptor AA-P700 Bundled with JVC's new proprietary KY-WARE software, comprising SDK and KY-LINK for system control and image acquisition Turnkey solutions available, incorporating IEEE1394 card & accessories Compatible with OHCI type IEEE1394 interfaces for simple connection to laptop or desktop PC External trigger function for Sensor or Flash Synchronisation Designed to accommodate applications that use IR illumination, by way of having the IR cut filter externally accessible for swapping out with alternative special JVC quartz filter

Image device 1/2-inch Interline Transfer CCD x 3 Scanning Progressive Total pixels 1.5 million pixels Effective pixels on CCD 1.45 million pixels (H: 1,392 x V: 1,040) Output pixels from CCD 1,360 x 1024 pixels 1,280 x 960 pixels switchable Resolution 1,000 lines Dynamic range 250% Synchronising system Internal (built-in SSG) Lens mount 1/2-inch C-mount Analogue output signals - Digital video output IEEE1394 6 pins (IIDC ver. 1.3 standard), Uncompressed data (not for DV output)   Protocol IIDC 1394 based Digital Camera Specification, Rev. 1.30   Frame rate 7.5 frames/s Sync output Internal synchronisation Sensitivity F8, 2000 lux (at 1/30 shutter) Gain 0 dB, +6 dB, +12 dB (step) 0 - 12 dB (variable), ALC Electronic shutter STEP 4 sec., 2, 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000, V.Scan, EEI V.SCAN 4.010s. to 1/5906.836s EEI 1/7.5s to 1/2384.7s Dimensions (W x H x D) (excluding connectors) 70 x 80 x 150mm 2-13/16 x 3-3/16 x 5-15/16 inches Weight 750g/1.65 lbs. Power supply DC 12V (when AA-P700 is used) DC8V to 40V (IEEE1394 power supply) Power consumption (Camera unit only) 12W (when AA-P700 is used, including lens) 7.2W (when IEEE1394 power supply +12V, without lens) Operating temperature 0° to 40°C/32° to 104°F Storage temperature -20° to 60°C/-4° to 140°F

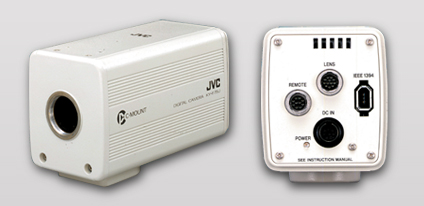

Simulated picture The values for weight and dimensions are approximate. Design and specifications subject to change without notice.
