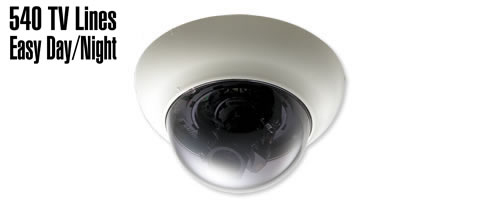

TK-C205U(A)



TK-C205U(A)



FEATURES
  • Easy to install with market standard electrical box compatibility
  • 1/4" High resolution IT CCD with 380,000 effective pixels
  • 540 TV lines of horizontal resolution
  • Easy day/night function: Chroma on/off
  • Super LoLux sensitivity:
    1.5 lx F1.2 (Color mode)
    0.9 lx F1.2 (B&W mode)
  • Signal-to-Noise ratio: 50 dB (AGC off)
  • Revolutionary integrated 10-bit DSP
  • Built-in variable focal length auto iris lens
    (f = 2.6 mm to 6.0 mm)
  • Full featured security camera
    1. Monitor video output (RCA) for easy camera setup
    2. Automatic gain control (AGC) on/off
    3. Auto tracking white balance (ATW) and manual modes: 2,300K to 10,000K
    4. Easy focus adjustment
    5. Backlight compensation on/off
    6. Sync systems INT/Line lock
    7. AC 24 V/DC 12 V power supply
Click to enlarge images
TK-C205U(A)TK-C205U(A)TK-C205U(A)
TK-C205U(A)TK-C205U(A)Pendant mount bracket
Wall mount bracket
DownloadS
to top
SPECIFICATIONS
CAMERA
Signal system NTSC
Image device 1/4" IT CCD
Number of effective pixels 380,000, 768 (H) x 494 (V)
Sync system Internal, Line lock
Video S/N 50 dB (AGC off, typical)
Horizontal resolution 540 TV lines (typical)

Minimum illumination
(Typical)

Color mode:









B&W mode:




1.5 lx (F1.2, AGC on, 25% video, wide end)
0.9 lx (F1.2, AGC on, 25% video, wide end)

with clear dome cover
3.0 lx (F1.2, AGC on, 50% video, wide end)



0.9 lx (F1.2, AGC on, 25% video, wide end)
0.7 lx (F1.2, AGC on, 25% video, wide end)

with clear dome cover
2.0 lx (F1.2, AGC on, 50% video, wide end)
White balance ATW/Manual (Switchable)
ATW Color temperature range 2,300K to 10,000K
Backlight compensation ON/OFF (Switchable)
LENS
Focal length 2.6 mm to 6 mm (Variable)
Max. aperture ratio F1.2 to F1.8
Angle of vision f = 2.6 mm
82° (H) x 59° (V)
f = 6 mm
35° (H) x 26° (V)
Angle adjustment range Horizontal: 120°
Vertical: 130°
Tilt: 30°
GENERAL
Power supply AC 24 V (60 Hz), DC 12 V
Power consumption 4.2 W
Weight 1.3 lbs (570 g)
Operating temperatures 14°F to 122°F (Recommended: 32°F to 104°F)
Dimensions ø6-3/16 inches x 3-9/16 inches (H)
(ø156 mm x 89 mm (H))
Accessories

• Instructions x 1

• Warranty card x 1
• Service information card x 1

• Template x 1
