FEATURES
- 1/3" High Resolution IT CCD with 380,000 Effective Pixels

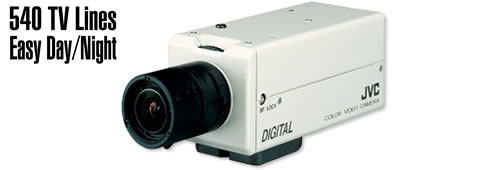

- 540 TV lines of Horizontal Resolution
- Easy Day/Night Function: Chroma ON/OFF
- Super LoLux™ Sensitivity:
0.7 lx F1.2 in Color Mode
0.48 lx F1.2 in B&W Mode
- Signal-to-Noise Ratio: 50 dB (AGC OFF)
- Revolutionary Integrated 10-bit Digital Signal Processor (DSP)
- Full Featured Security Camera
- Automatic Electronic Shutter (AES) Mode ON/OFF
- Automatic Gain Control (AGC) ON/OFF
- Automatic Tracking White Balance (ATW) and manual modes
- Backlight Compensation ON/OFF
- Sync systems INT/Line Lock
- Supports video/DC iris lenses
- C/CS lens compatible
- Ultra compact camera body
- AC 24 V/DC 12 V Power Supply
|
|
 |
| SPECIFICATIONS |
|
| Signal system |
NTSC |
| Image device |
1/3" IT CCD
(with complementary color filter) |
| Number of effective pixels |
380,000 (768 H x 494 V) |
| Video processing |
Built-in DSP (10-bit) |
| Pickup area |
4.8 mm (H) x 3.6 mm (V) |
| Sync system |
Internal, Line Lock (60 Hz regions only) |
| Scanning system |
2:1 interlaced, 525 lines |
| Scanning frequency |
15.734 kHz (H); 59.94 Hz (V) |
| Video output |
Composite video signal: 1.0 V(p-p), 75 ohms |
| Video S/N |
50 dB (AGC OFF) |
| Horizontal resolution (typical) |
540 TV lines |
Minimum illumination (typical)
Color mode:
B&W mode: |
0.7 lx (F1.2, AGC ON, video level 25 %)
1.5 lx (F1.2, AGC ON, video level 50 %)
0.48 lx (F1.2, AGC ON, video level 25 %)
1.0 lx (F1.2, AGC ON, video level 50 %) |
| Iris control |
Video iris/DC iris |
| White balance |
ATW/Manual |
| BLC |
ON/OFF |
| AES |
ON/OFF (1/60 to 1/100,000 sec.) |
| Lens mount |
C/CS |
| Power supply |
AC 24 V (60 Hz), DC 12 V |
| Power consumption |
4.7 W |
| Operating temperatures |
14°F to 122°F (-10°C to 50°C)
32°F to 104°F (0°C to 40°C) (Recommended) |
Regulatory standard
|
UL2044, FCC Part 15, Class A, ICES-003 |
| Weight |
0.82 lbs. (370 g) |
|
|
