FEATURES
- 1/4" High resolution IT CCD with 380,000 effective
pixels
- 12x optical zoom lens (3.8 mm to 45.6 mm)
- Super LoLux™ Sensitivity:
Color mode
3.6 lx (AGC 20 dB, 50% video, wide end)
1.8 lx (AGC 20 dB, 25% video, wide end)
B&W mode
0.15 lx (AGC 20 dB, 50% video, wide end)
0.075 lx (AGC 20 dB, 25% video, wide end)
- Day/Night surveillance with auto IR cut filter on/off
- Built-in menu
- Private mask and Auto black
- Auto trace/Auto pan/Auto patrol/Auto return/Area title
- Variable panning/tilting speed
- 100 preset positions
- Easy AF and one push auto focus
- 360 degree endless rotation, 180 degree Auto flip
- RS-422A/RS-485 interface
- Alarm terminal (Input x 1, Output x 1)
|
|
 |
| SPECIFICATIONS |
|
| CAMERA |
|
| Image device |
1/4" IT CCD |
| Number of effective pixels |
380,000 (768 H x 494 V) |
| Sync system |
Internal, Line lock |
| Video output |
Composite video signal: 1.0 V(p-p), 75 ohms |
| Video S/N |
50 dB, AGC off, Enhance level -5 |
| Horizontal resolution |

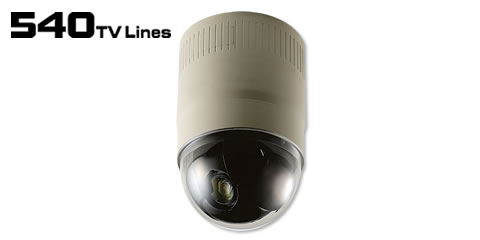

540 TV lines |
Minimum illumination
Color mode:
B&W mode: |
3.6 lx (F1.6, AGC 20 dB, 50 % video, wide end)
1.8 lx (F1.6, AGC 20 dB, 25 % video, wide end)
0.15 lx (F1.6, AGC 20 dB, 50 % video, wide end)
0.075 lx (F1.6, AGC 20 dB, 25 % video, wide end) |
| White balance |
ATW/AWC/Manual paint (2,300K to 10,000K) |
| Electronic shutter |
1/60 (Standard), 1/100 (50 Hz, flickerless), 1/250,
1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| AGC |
Off/10 dB/20 dB |
| Backlight compensation |
4 patterns |
| Camera ID |
16 characters |
| LENS |
|
| Zoom ratio |
12x, 3.8 mm to 45.6 mm |
| Maximum aperture |
F1.6 (Wide) |
| Zooming speed |
Approx. 2.0 sec. (Max.) |
| Focus speed |
Approx. 1.2 sec. (Max.) |
| MOVING MECHANISM |
|
| Preset positions |
100 |
| Panning range |
360° endless rotation |
| Panning speed |
1.5°/sec. to 180°/sec. (Preset) |
| Tilting range |
0° to 90° |
| Tilting speed |
1°/sec. to 120°/sec. (Preset) |
| GENERAL |
|
| Interface |
RS-422A or RS-485 (Switchable), 9,600 bit/sec. |
| Power supply |
AC 24 V (60 Hz) |
| Power consumption |
1.5 A |
| Operating temperatures |
–10°C to 50°C (Operating), 0°C to 40°C (Recommended) |
| Dimensions |
ø 4-3/4” (120 mm) x 7-1/2” (190 mm) (H) |
| Weight |
2.9 lbs. (1.3 kg) |
| Accessories |
Instructions x 1, Warranty card x 1,
Service information card x 1, Ceiling mount x 1, Template x 1, Ferrite core x 1, Wire clamp x 1 |
|
|
