FIXED COLOR DOME CAMERAS

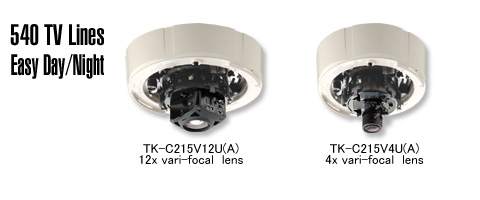

TK-C215V12U(A)/TK-C215V4U(A) |
 |
With variable lenses, 540 TV lines and easy-to-install flush mounts,
the TK-C215(A) series high-performance dome cameras offer superior
surveillance for airports, stores, factories and building exits/entrances. |
 |
| SIMPLE AND FLEXIBLE INSTALLATION |
The TK-C215 series uses an unprecedented flush mount installation method with which installation is as simple as ninety-degree rotation of the three L-shaped mounting brackets stored in the dome camera to secure it in place. No extra brackets are required. With this new method, installation can be completed in nearly one-fifth the time of our conventional surveillance cameras. Moreover, surface mounting is possible, too.
|

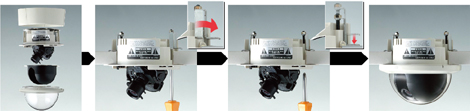

1. Remove the camera’s outer cover and ceiling
panel. |
|
2. Once the camera has been inserted into the hole drilled in the ceiling, push in the screws and rotate them 90° clockwise. |
|
3. After removing the screwdriver, the springs attached to the screws will stretch and the camera can be firmly secured to the ceiling.
Note: This must be carried out for all three screws. |
|
4. Mount the ceiling panel to complete installation. |
| 3 Ways
flexibility of installation |
| No additional mounting hardware is required
for flush mounting on a ceiling.
Wall mounting is even possible thanks to the TK-C215’s triple
axis rotation system. Furthermore, use 6 inch electrical box,
it’s
possible to directly install on ceiling. |
 |
| TRIPLE AXIS ROTATION SYSTEM FOR WIDE LENS ADJUSTMENT |
 |
The TK-C215’s lens angle can be freely adjusted within the following range: 350° (horizontal), ±80°(vertical) and ±175° (rotation). Since images do not appear inverted even when the lens angle is set at a rotation of ±175°, the camera can be installed virtually anywhere. Thanks to this outstanding lens angle adjustment mechanism, surveillance image quality will not be compromised regardless of where the dome camera is installed. |

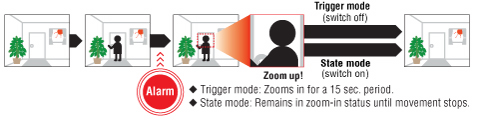

| ALARM ZOOM FUNCTION (TK-C215V12U(A)
only) |
The TK-C215V12U comes with a 12x lens, alarm input interface, and memory for two different lens positions. Thanks to the memory function, the camera lens unit can be set for two lens positions, and the zoom-up mechanism moves to its alarm position from its regular position when alarm signal is received. When an object enters the range of surveillance, the camera engages with the sensor installed at the door or exit/entrance, an alarm signal is activated and the camera automatically optical zooms in on the object. Then, once the object has left the surveillance range, the camera zooms out to the original scene.
|
 |
|
Photo: TK-C215V4U(A) |
When the focus adjustment function is turned "ON", the lens iris is forced fully open for about 30 seconds before returning to its original position. This results in a shallow depth of field (high-speed shutter) and makes it much easier to adjust focus.
|
What’s depth of field?
When the zone of acceptable focus is broad, the depth of field is said to “deep”, and when the zone is narrow, the depth of field is said to be “shallow”. If the depth of field is deep, the video will appear to be in focus from front to back. If the depth of field is shallow, however, only the main object will actually be in focus.
|
|
|
|
| SPECIFICATIONS |
|
| CAMERA |
|
| Signal system |
NTSC |
| Image device |
1/4" IT CCD |
| Number of effective pixels |
380,000 |
| Pick-up area |
3.6 mm (H) × 2.7 mm (V) |
| Sync system |
Internal, Line lock |
| Horizontal resolution (typ.) |
540 TV lines |
| Video S/N ratio |
50 dB |
Minimum illumination (typ.)
Color mode: |
TK-C215V12U(A)
1.0 lx F1.6, AGC on |
TK-C215V4U(A)
0.75 lx F1.3, AGC on |
|
| B&W mode |
TK-C215V12U(A)
0.6 lx F1.6, AGC on |
TK-C215V4U(A)
0.4 lx F1.3, AGC on |
|
| AGC |
Yes (on/off) |
| Backlight compensation |
on (1pattern)/off |
| White balance |
ATW/Manual |
| Easy day/night |
Yes |
| Focus adjust |
Yes |
| LENS |
|
| Focal length |
f = 3.8 mm to 45.6 mm, 12x vari-focal
(TK-C215V12U(A))
f = 2.8 mm to 10 mm, 3.6x vari-focal
(TK-C215V4U(A)) |
| Max. aperture ratio |
F1.6 to F2.7 (TK-C215V12U(A))
F1.3 to F3.0 (TK-C215V4U(A)) |
| Iris |
DC iris |
| Field |
52° (H) × 39° (V) to 4.5° (H) × 3.4° (V)
(TK-C215V12U(A))
73° (H) × 54° (V) to 20° (H) × 15° (V)
(TK-C215V4U(A)) |
| Angle adjustment range |
Horizontal: 350°/Vertical: ±80°/Rotation: ±175° |
| GENERAL |
|
| Power supply |
AC 24 V (50/60 Hz), DC 12 V |
| Power consumption |
6.6 W (TK-C215V12U(A))
4.2 W (TK-C215V4U(A)) |
| Operating temperatures |
14°F to 122°F (-10°C to 50°C)
Recommended: 32°F to 104°F (0°C to 40°C) |
| Dimensions |
ø6-1/8 inches x 4-7/8 inches
(ø150 mm x 123 mm (H)) |
| Weight |
1.54 lbs. (700 g) (TK-C215V12U(A))
1.43 lbs. (650 g) (TK-C215V4U(A)) |
|
|
