Sleek Design and Easy Setting
With their stylish, symmetrical designs and sleek aluminium frames, JVC's HD projectors make an attractive addition to any interior environment. Tough enough and durable enough to withstand the rigours of industrial use, these projectors offer extremely flexible installation capability, making them ideal for use in design studios, post-production studios, museums or mini theatres. All models feature a lens shift function for versatile positioning and both long-focus and short-focus models are available.
Film-like Images and Excellent Colour Reproduction 3 D-ILA chip imaging with native 1080p resolution
HD D-ILA device
JVC's D-ILA imaging chips feature native 1920 x 1080 resolution and utilise "Non-Moving" mirror reflective technology to produce the full HD resolution you need for critical image display applications.
Smooth picture/D65 colour temperature
Enlarged picture of
the D-ILA imaging
device
At only 0.35µm, the gaps between pixels are so narrow that no grids appear on the picture surface. As a result, the outlines of people, animals, and other objects are extremely smooth and natural. Reference standard D65 colour temperature ensures accurate colour reproduction of video, CG, or film-originated programming. D65 performance and dynamic range is adjusted by an illumination system with RGB-optimised f-number.
In addition, with a high contrast ratio of 2500:1, high quality images with deep black tones and great depth can be reproduced.
Advantages of 3-chip D-ILA technology
— JVC's original D-ILA technology Three D-ILA chips for smooth, flicker-free high-resolution images
JVC's original 3-chip D-ILA (Direct Drive Image Light Amplifier) technology produces clear, natural images without the annoying flicker or "rainbow effect" that plagues single panel projectors. Images are as smooth as film, boasting incredible detail.
Cinema-quality picture with no visible grid
There is no visible grid or "screen door effect" with JVC's D-ILA so you can enjoy the beauty of film-like resolution.
Professional-standard grey scale reproduction
JVC's exclusive AG (Analogue Gradation) technology produces highly accurate gradations with low noise, particularly in darker areas with less than 20% brightness. The quality of grey-scale reproduction is further enhanced by high 2500:1 contrast that ensures high-precision, high-quality pictures without black paint even when the scene on screen is dark.
Superior colour reproduction
JVC's unique optical engine produces rich, natural colours with smooth gradations and low noise. Colour temperature is set at D65, providing optimal cinema-style reproduction.
As the D-ILA's liquid crystals are aligned vertically, the pixels are "normally black" when no voltage is applied. As a result, D-ILA technology reproduces blacks that are truly black. It also offers a uniform response, irrespective of brightness, displaying a wide range of intermediate tones.
DLA-HD10K/HD10KS Colour Coordinates
Comparison of gradation characteristics D-ILA(accurate colours with absolute white and black)
Conventional projector (bluish white and reddish black)
Convenient 2-Piece Installation
The lightweight 17 kg projector is set up in the viewing room, while the critical digital video processor is mounted in the equipment rack adjacent to the video sources or a PC. Only one digital interface cable (max. 10 m) or optical conversion cable (10 m, 20 m, 30 m) is required between the processor and projector, ensuring that maximum signal integrity is maintained.
Two Processors Available
Two types of processor are available. One is an AV hub processor that allows you to connect a variety of audio and video equipment including a PC*. The other is a high-performance high-end digital video processor designed for the most quality-critical imaging applications. Simply choose the one most appropriate to your needs.
*AV hub processor can be connected to a PC, however, the digital video processor cannot.

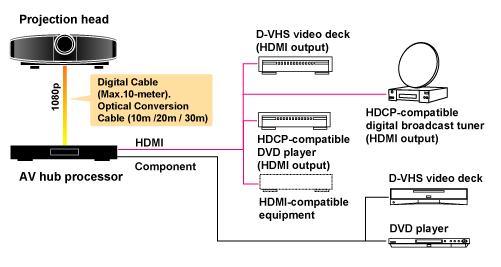

AV hub processor system diagram

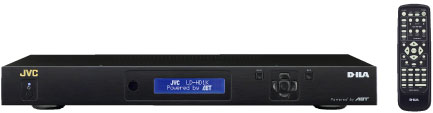

LD-HD1K AV hub processor
This is an excellent cost-performance model with superior operability. It features 11 video signal inputs including 4 HDMI connectors. A selector can be used and, in addition, audio signals can be switched with the digital audio input connector.

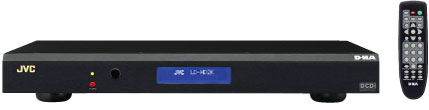

LD-HD2KB digital video processor
This high picture quality digital video processor was developed based on a high-performance Faroudja-manufactured model.
Incorporating Faroudja's highly reputed DCDi high-quality picture circuit, MADI (motion-compatible technology) and 3:2 pull-down function, this processor sends optimised video signals to the projection head. The unit is 1080p throughput ready.
Flexible Installation
To accommodate the widest range of rooms, two models are available, each offering a different range of lens throw distances. The DLA-HD10KS has a lens throw ratio of 1.5 – 2.1:1, while the DLA-HD10K has a lens throw ratio of 2.0 – 3.8:1.
Precision high-resolution all-glass lenses with motorised zoom and focus make installation a snap, while installation flexibility
is further enhanced by lens shift capability. This allows the light path to be adjusted according to the installation position, even when installed on a ceiling or table.
Low Fan Noise Design
Any external noise can be annoying in a quiet room. That's why JVC has developed an original new airflow design that provides optimum cooling while keeping the noise level down to a near silent 27 dB. Thanks to this low fan noise design, these projectors are suitable to various applications and working styles.
Cost-effective NUP Lamp
To keep running costs down, the DLA-HD10K/10KS projector uses a low-cost, long-life 200 W ultra high-pressure mercury lamp. The lamp can be easily replaced without removing the projector from the ceiling, and should be replaced approximately every 2000 hours.
Projectors
Image Device
3-chip D-ILA® (0.82-inch diagonal)
Aspect Ratio
16:9
Throw Distance (16:9)
Short focus: 1.9 m to 9.3 m (6.43 ft to 30.57 ft)
Long focus: 2.5 m to 15.0 m (8.46 ft to 49.23 ft)
Screen Size (16:9)
60" to 200" diagonal
Resolution
1920 x 1080 pixels (16:9) x 3 chips;
Total resolution: 6,220,800 pixels
Projection Lens
Short focus: 1.4X zoom lens (1.5 – 2.1:1)
Long focus: 1.9X zoom lens (2 – 3.8:1)
Power zoom/focus, 0 - 60% offset with manual shift
Brightness
600 lumens
Input Signals
1080/60p, 1080/50p
Lamp
200 W NUP (Model No. BHL5008-S)
Contrast Ratio
2500:1
Colour Temperature
D65/user selectable 1/user selectable 2
Gamma Control
Normal, A, B, and CUSTOM
Noise Level
27 dB
TERMINALS
Input
DVI (HDCP compatible DVI-D) x 1
Serial Control
RS-232C x 1, screen trigger (12 V) x 1, service x 1
RGB x 1 (BNC: Common use for component), HDMI x 4 (HDCP-compatible), Component x 3 (RCA x 2, BNC x 1: Common use for RGB), Composite x 2 (RCA), S-Video (Y/C) x 2
RGBC (BNC) x 1 (Common use for YPbPr), DVI (HDCP compatible DVI-D) x 1, Video (BNC) x 1, Y/C(Mini DIN) x 1, YPbPr (BNC) x 1(Common use for RGBC),
Video Output Signals
1080/60p,1080/50p
Video Output Terminals
HDMI x 1 (HDCP-compatible)
DVI (HDCP compatible DVI-D) x 1*
* Terminals other than DVI are not used for D-ILA HD Projection System.
Audio Input Terminals
Digital (Coaxial) x 2, Digital (Optical) x 2,Analogue (RCA) x 1, HDMI x 4
(Common use with video input terminal)
Audio Output Terminals
Digital (Coaxial) x 1, Digital (Optical) x 1
Control Terminals
RS-232C (D-sub 9-pin) x 1
RS-232C (D-sub 9-pin) x 1, DC 12 V trigger terminal (mini jack) x 1
GENERAL
Power Requirement
100 V – 240 V AC, 50/60 Hz
Power Consumption
30 W
35 W

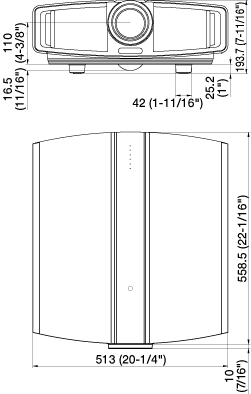

Dimensions (W x H x D)
434 x 46 x 263 mm without protrusions
438 x 45 x 303 mm without protrusions
Weight
2.9 kg
6.3 kg
Screen Size
Short-focus Zoom
(1.5 to 2.1: 1 lens, aspect ratio: 16:9)
Long-focus Zoom
(2.0 to 3.8, aspect ratio: 16:9)
Throw Distance
Diagonal
Width
Wide
Tele
Wide
Tele
in.
mm
ft.
m
ft.
m
ft.
m
ft.
m
ft.
60
1328
4.36
1.96
6.43
2.77
9.09
2.58
8.46
4.94
16.20
70
1550
5.08
2.29
7.51
3.23
10.59
3.02
9.91
5.78
18.96
80
1771
5.81
2.63
8.63
3.70
12.14
3.46
11.35
6.62
21.71
90
1992
6.53
2.96
9.71
4.17
13.68
3.90
12.79
7.46
24.47
100
2214
7.26
3.29
10.79
4.64
15.22
4.34
14.24
8.30
27.22
110
2435
7.99
3.63
11.91
5.11
16.76
4.79
15.71
9.14
29.98
120
2657
8.71
3.96
12.99
5.57
16.27
5.23
17.15
9.98
32.73
130
2878
9.44
4.29
14.07
6.04
19.81
5.67
18.60
10.82
35.49
140
3099
10.16
4.63
15.19
6.51
21.35
6.11
20.04
11.65
38.21
150
3321
10.89
4.96
16.27
6.98
22.89
6.55
21.48
12.49
40.97
160
3542
11.62
5.30
17.38
7.45
24.44
6.99
22.93
13.33
43.72
170
3764
12.35
5.63
18.47
7.91
25.94
7.43
24.37
14.17
46.48
180
3985
13.07
5.96
19.55
8.38
27.49
7.88
25.85
15.01
49.23
190
4206
13.80
6.30
20.66
8.85
29.03
8.32
27.29
200
4428
14.53
6.63
21.75
9.32
30.57
8.76
28.73
Unit: mm(inches)
DLA-HD10K/HD10KS
LD-HD1K
LD-HD2KB
DLA-HD10K/HD10KS
LD-HD1K
LD-HD2KB
Projector
Instructions, power cord, remote control(RM-MH10K), two AA batteries, warranty card
LD-HD2KB
Instructions, Power Cord, DVI-D Cable (5 m), Remote Control, Two Size AA Batteries, Warranty Card
LD-HD1K
Instructions, Power Cord, DVI-HDMI Cable (5 m), Remote Control, Two Size AA Batteries, Warranty Card
Design and specifications subject to change without notice.
D-ILA is a registered trademark of Victor Company of Japan, Limited.
All brand or product names may be trademarks and/or registered trademarks of their respective owners.
Any rights not expressly granted herein are reserved.
All photographs and screenshots in this web site are simulated.
