- JVC's proprietary D-ILA®
technology for unsurpassed image quality
- 1,365 x 1,024 native resolution for true SXGA display without
compression
- High brightness of 5,000 ANSI lumens
- Super contrast ratio of 1000:1(DLA-M5000SC)
- Three types of projection lenses available with motorized
shift; 3:1
to 7:1 zoom, 1.5:1 fixed or 1:1 fixed (optional)
-
- Easy stackable design for enhanced projector power
- 93% aperture ratio for non-pixelated "crystal clear" images
- Proprietary image enhancement technologies
* ADPC: Optimizes picture quality regardless of the input signal
resolution
to ensure smooth, clear images. Resizing function for full screen
projection of XGA/SVGA/VGA images
*10 bit digital gamma correction: Facilitates accurate gray
scale and color
reproduction
- Full signal input capability (digital TV ready)
- Up-down/left-right inversion
- Auto-alignment function for automatic adjustment of tracking,
phase and
position
- On-screen menu (6-language selectable)
- Selectable color temperature (high/mid/low)
- Provided remote control
|
|
 |
| Image device |
3 D-ILA®(0.9
inches diagonal) |
Projection lens
Optional |
3:1 to
7:1 zoom
(V) +/-50% motorized shift
(H) +/-32% manual shift
1.5:1 lens
(V) +/-50% motorized shift
(H) +/-32% manual shift
1:1 lens |
| Brightness |
5,000 ANSI lumens |
| Native
resolution |
1,365 x 1,024
pixels (full coverage of SXGA (1,280 x 1,024) graphics (SXGA,
XGA, SVGA, VGA)) |
| Source resolution |
Up to 1,600
x 1,200 (compression of UXGA) |
| Scan
frequency |
Horizontal:
15 to 82 kHz
Vertical: 50 to 78 Hz |
| Input |
Analog RGB
x 2 (D-sub 15 pins (female) x 1, R, G, B,
H, V x 1)
Y/C separated x1
Composite x1
Component x 1 (Y/R-Y/B-Y, Y/PB/PR) |
| Output |
PC monitor: D-sub
(female) |
Screen size
3:1to7:1zoom:
1.5:1:
1:1: |
(mm: width)
(Inch: diagonal, 4:3)
1,219 mm to 12,192 mm (60" to 600")
1,321 mm to 5,080 mm (65" to 250")
1,626 mm to 4,064 mm (80" to 200") |
Throw distance
3:1to7:1zoom:
1.5:1:
1:1: |
5.1 m
to 42.7 m (16.6 ft to 140 ft)
2.0 m to 7.8 m (6.5 ft to 25.7 ft)
1.6 m to 4.0 m (5.1 ft to 13.2 ft) |
| Lamp |
1.6 kW, Xenon |
Power
consumption |
2,200 W |
| Power requirement |
200 - 240 V,
50/60 Hz AC(U/E type) |

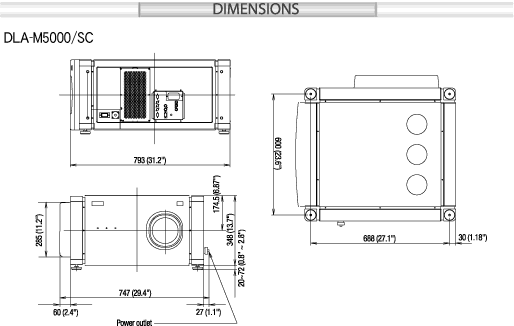

Dimensions
(WxHxD) |
747 x 368 x
793 mm (29.4" x 14.5" x 31.2")
excluding lens |
| Weight |
71 kg (157 lbs.)excluding
lens |
|
|
