Intelligent, advanced presentation projection |
- 1,400 x
1,050 resolution for true SXGA+ display without compression
- High brightness of 1,500 ANSI lumens
- 93% aperture ratio for non-pixelated "crystal clear"
images
- Proprietary image enhancement technologies
* ADPC: Optimizes picture quality regardless of the input signal
resolution to ensure
smooth, clear images. Resizing function for full screen projection
of UXGA/XGA/SVGA/VGA images
*10 bit digital gamma correction: Facilitates accurate gray
scale and color reproduction
- Digital shift
- Auto-alignment function for automatic adjustment of tracking,
phase and position
- 16 X digital zoom function, freeze frame
- New GUI on-screen display (selectable from 8 languages)
- JVC color
profile (4 color profile modes available)
- DVI-D Plug & Play
|
High-performance video/cinema projection |
- JVC's proprietary D-ILA® technology for unsurpassed
image quality
- High contrast ratio: 800:1
- Full signal input capability (HDTV format compatibility):
720p, 1080i (60, 50), 1080p (24, 25, 30), 1080p, (24sF, 25sF,
30sF)
- H/V digital keystone correction (horizontal: ±10 degrees,
vertical ±30 degrees)
- Selectable color temperature (6500/STD/user)
- Easy-to-change lamp and low running cost
- Original
JVC D.I.S.T.
|
|
 |
| Image device |
3 D-ILA®(0.7
inches diagonal) |
| Projection
lens |
DLA-SX21: Zoom
lens
(2:1 - 2.6:1, power focus, 40% offset)
DLA-SX21S: 1:1 short-focus fixed lens (0% offset) |
| Brightness |
1,500 ANSI lumens
|
| Resolution |
1,400 x 1,050
pixels (full coverage of SXGA+, SXGA (1,280 x 1,024) graphics
(SXGA, XGA, SVGA, VGA)) |
| Source resolution |
Up to 1,600
x 1,200 (compression of UXGA) |
| Scan frequency |
Horizontal:
15 to 120 kHz |
| Input |
Vertical: 24,
25, 30, 50 - 120 Hz
Analog RGB x 2 (D-sub 15 pins (female) x 1, R, G, B, H, V
x 1)
Y/C separated x 1
Composite x 1
Component x 1 (Y/R-Y/B-Y, Y/PB/PR)
Audio x 1 |
| Output |
PC monitor:
D-sub (female) |
| Screen
size (width) |
DLA-SX21: 0.8
m to 6.1 m (2.6 ft to 20.0 ft)
DLA-SX21S: 0.8 m to 2.0 m (2.6 ft to 6.6 ft) |
| Throw
distance (approx.) |
DLA-SX21: 1.6
m to 12.0 m (5.2 ft to 39.4 ft)
DLA-SX21S: 0.8 m to 2.0 m (2.6 ft to 6.6 ft) |
| Lamp |
250 W, NSH |
| Power
consumption |
340 W |
| Power requirement |
100 - 240 V,
50/60 Hz AC |

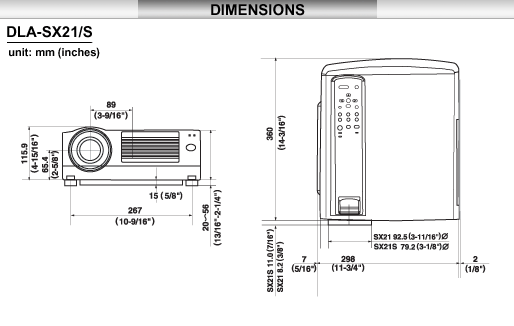

Dimensions
(WxHxD)
|
298 x 124 x
360 mm (11-3/4" x 4-15/16" x 14-3/16" ) excluding
projections |
| Weight |
5.9 kg (13 lbs.)
|
|
|
