- Outstanding film-like picture reproduction
JVC's DILA (direct Drive Image Light Amplifier) technology features
a high-density, reflective liquid crystal structure that provides
you with today's optimal combination of brightness, resolution,
contrast and color for the big screen. Thanks to a 93% aperture
ratio, it also provides the highest native resolution with the
least visible pixels, making images as smooth and natural as
film.
- The DLA-G150CL incorporates three high-density 1.4M pixel
(1,365 x 1,024 pixels) image reproduction devices that make
it possible to project high resolution images with a total of
4.2M pixels.
- Even the super-sharp clarity of an SXGA (1,280 x 1,024 pixels)
image can be reproduced faithfully on the big screen with none
of the scaling or loss of quality typically associated with
projection of high-resolution computer graphics and CAD/CAM
images.
- With video resolution of 1000 TV lines, small text, characters,
icons and cursors are clearly legible even at the corners of
the projected image.
- The DLA-G150CL has input capability up to 105 k Hz, making
it compatible with resolution as high as UXGA (1,600 x 1,200
pixels).
- A super contrast ration of 600:1 ensures that images are sharp
and crisp with enhanced depth and superior clarity.
- Professional-standard gray scale reproduction
With gray scale color tracking is set to "D65" standard,
source media can be faithfully reproduced with the same color
gradations intended by the creator of the program. All color
gradations are natural and consistent, including absolute black
and absolute white. Even in dark scenes, subtle gradation differences
can be clearly distinguished.
- A built-in de-interlacer cleans up interlaced TV artifacts
to improve perceived vertical resolution of TV signals and make
them appear smoother, eliminating annoying raster lines.
- 420 W Xenon lamp produces a more natural, color-stable light,
enabling vivid, true-to-life color reproduction.
- With high brightness of 1000 ANSI lumens, a brighter, cleaner
picture can be obtained even in brighter rooms or on larger
screens.
- With zoom lens, digital keystone correction and both front
and rear projection capability, this projector offers a variety
of installation configurations and can be mounted on a ceiling
or placed on a tabletop.
- Screen aspect ratio can be switched between 16:9 and 4:3 with
one-touch operation.
- DVI-D connector (24-pin) allows digital-to-digital input and
ensures high quality image reproduction without degradation.
- Can be connected directly to various source devices including
a personal computer, DVD, VCR and HDTV equipment.
- RS-232C input/output can be connected in series to this connector,
making it easier to configure complex, multi-device systems.
- Lamps last twice the normal lamp life when you use the lamp
power control mode. When you first start using the lamp, its
power output is set to about 70%. As the lamp's brightness decreases
over time, the power output is gradually raised. This ensures
a consistently bright picture and extends the lamp's service
life.
- Seven different brightness levels are available, ranging from
about 70% to 100% of the lamp power output. This function is
especially useful with a multi-screen system, enabling you to
independently adjust the brightness of each screen to produce
uniform brightness across the entire multi-part screen.
- Low noise fan provides a quieter, more enjoyable environment.
- "Class B" classification approved for home use
- Easy-to-use wireless remote control
|
|
|
| Image device |
3 D-ILA®
(0.9 inches diagonal) |
Projection lens
GL-M2920ZG
GL-M2930SZG
GL-M2915SG
GL-M2910G |
(Throw distance:
Screen width)
2:1 to 3:1
2.9:1 to 5.5:1 zoom, 30% to 55%, manual shift
1.5:1 fixed, 30% to 55%, manual shift
1:1 fixed, 0% on axis |
| Brightness |
1,000 ANSI lumens
|
| Contrest ratio |
600:1 |
| Native resolution |
1,365 x 1,024 pixels
(full coverage of SXGA (1,280 x 1,024) graphics (SXGA, XGA, SVGA,
VGA)) |
| Source resolution |
Up to 1,600 x 1,200
(compression of UXGA) |
| Scan frequency |
Horizontal: 15
to 105 kHz
Vertical: 50 to 100 Hz |
| Input |
Analog RGB x 2
(D-sub 15-pin (female) x 1, R, G, B, H, V x 1)
Y/C separated x 1
Composite x 1
Component x 1 (Y/R-Y/B-Y, Y/PB/PR)
DVI connector x 1 |
| Output |
PC monitor: D-sub
(female) |
Screen size(width)
2:1 to 3:1 zoom
2.9:1 to 5.5:1 zoom
1.5:1
1:1 |
Wide: 1.42 m to 10.59 m (4.66 ft to 34.74 ft)
Tele: 0.85 m to 7.01 m (2.79 ft to 22.99 ft)
Wide: 1.63 m to 6.90 m (5.35 ft to 22.64 ft)
Tele: 0.81 m to 5.49 m (2.66 ft to 18.01 ft)
1.22 m to 3.05 m (4.00 ft to 10.00 ft)
0.81 m to 4.06 m (2.66 ft to 13.32 ft) |
Throw distance
2:1 to 3:1 zoom
2.9:1 to 5.5:1 zoom
1.5:1
1:1
|
2.5 m to 20 m (8'2" to 65'7")
4.52 m to 29.87 m (14'10" to 98')
1.76 m to 4.50 m (5'9" to 14'9" )
0.77 m to 4.03 m (2'6" to 13'3") |
| Lamp |
420 W, Xenon |
| Audio |
Built-in stereo
speaker (1 W + 1 W stereo) |
| Power consumption |
620 W |
| Power requirement |
100 - 120 V, 50/60
Hz AC (U type)
200 - 240 V, 50/60 Hz AC (E type) |

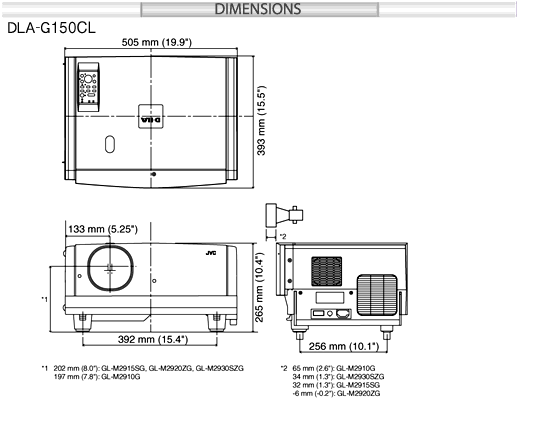

| Dimensions (WxHxD) |
505 x 265 x 393 mm
(19.9" x 10.4" x 15.5") |
| Weight |
14.6 kg (32.12 lbs.)
(excluding lens) |
|
