Three
native 1920 x 1080 D-ILA chips
Thanks to the newly developed HD D-ILA devices,
the native resolution of the DLA-HD2K is 1920 x 1080, the
extreme HD resolution available today for home theatre projector
applications.
D-ILA: The Most Advanced LCOS Technology
Available
JVC's patented D-ILA chips are the most highly
refined form of LCOS, offering unique performance characteristics
not found elsewhere.
Optimum colour illumination
Achieved from an economical ultra high-pressure
NSH lamp that uses illumination optics to optimise the f-number
for each primary colour, this exclusive JVC process ensures
optimum contrast of individual colours and a D65 colour temperature.
Newly-developed
projection lens
Employs a 10-group, 13-layer 100% glass lens
with an aluminium tube and anti-flare finish to answer the
performance potential of HD-compatibility.
High Contrast Ratio of 2000:1
Cinema-quality picture with no visible grid
There is no visible grid or "screen door
effect" with JVC's D-ILA. So, you can enjoy the benefits
of both filmlike resolution and accurate reproduction of natural
colours.
Superior
colour reproduction
JVC's unique optical engine produces rich,
natural colours with smooth gradations and low noise. By setting
the colour temperature at the D65 standard, source media can
be faithfully reproduced with the same gradations as the original
picture. Furthermore, JVC's exclusive AG* technology produces
highly accurate gradations with low noise, particularly in
darker areas of less than 20% brightness.
*Analogue gradation
True
black reproduction
One important characteristic of D-ILA devices is that the
crystals are aligned vertically, meaning that the D-ILA technology
can reproduce blacks that are truly black. It also offers
a uniform response, irrespective of brightness, so it can
display a wide range of intermediate tones.
Cost-effective NSH lamp
To ensure lower running costs, the DLA-HD2K
uses a 250W ultra high-pressure mercury NSH lamp, which should
be replaced after approximately 2,000 hours of operation.
Exclusive digital video processor
Co-developed with Faroudja, this exclusive
processor can be connected to various sources including 480i,
480p and 576i SD signals as well as 720p and 1080i HD signals.
Faroudja's colour matrixing provides accurate colour profiles
for NTSC and HDTV, allowing the processor to convert standard
analogue and digital DVI video signals to a high-resolution
digital video signal that can be transmitted via the DVI-D
connector to the projector and is fully HDCP compliant.

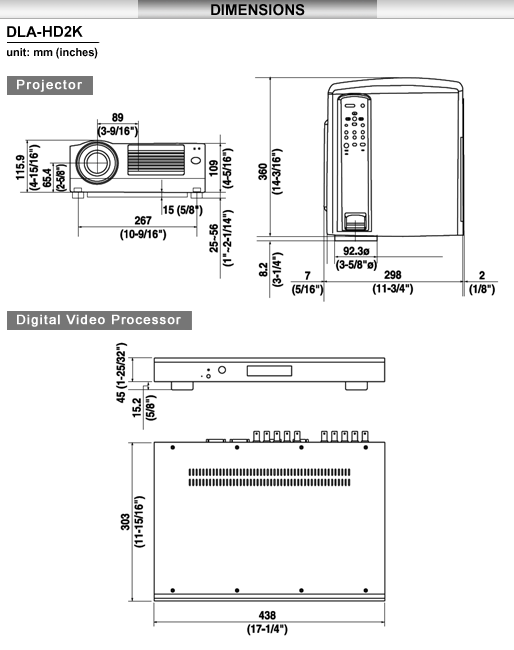

Convenient,
space-saving 2-piece design
The projector head and electronics unit can
be separated by up to 5 meters. The projector head is connected
to a standard rack-mountable electronics unit by a single
zero-loss digital cable (DVI-D) transmitting the 1080/60P
signal.
Infrared remote controls
Employ discrete IR commands for common features and have discrete
buttons for easy capture of IR data to 3rd party control systems.
PROJECTOR
Device
3-chip D-ILA®
(0.82-inch diagonal)
Aspect
Ratio
16:9
Screen
Size/Throw Distance
1.6m to 10.5m
(16:9)/40" to 200" (16:9)
Resolution
1920 x 1080
pixels (16:9) x 3 chips: Total resolution: 6,220,800 pixels
