FEATURES
  • High resolution
    Provides the world's first native QXGA (2048 x 1536 pixels) ultra-high resolution, ensuring picture-perfect image reproduction. With 3.2M pixels, QXGA offers 4 times the XGA resolution of 800K pixels.
  • Full HDTV resolution easily encompasses the full HD specifications of 1920 x 1080, allowing projection of full-spec HDTV images without resizing.
  • With its powerful 2 kW xenon lamp and new optical system design, the DLA-QX1G achieves outstanding brightness of 7,000 ANSI lumens.
  • New D-ILA device features 2048 x 1536 pixels, providing a total of 3.2M pixels arranged on a 1.3-inch panel. A separate D-ILA device is used for each color (R/G/B), bringing the total number of pixels to 10 million. The result is resolution 2.4 times that of an SXGA device.
  • 10-bit digital signal processing for maximum suppression of signal degradation and noise.
  • The D-ILA device's design allows unlimited reduction of the space between pixels.
  • High aperture ratio of 93%
  • Possible to project natural-looking images with pixelization almost completely eliminated.
  • Using D-ILA device and vertically aligned liquid crystals, super contrast of more than 1000:1 is achieved by the device itself.
  • As normally black - black at no modulation - is achieved, true black reproduction is possible.
  • Analog gradation allows accurate reproduction of subtle color tones and delicate shades. Gradation characteristics for dark areas are excellent.
  • By using a xenon lamp - which has spectrum characteristics close to that of natural light, the DLA-QX1G can faithfully reproduce the original characteristics of images.
  • Color temperature can be switched between three settings (D65/D55/user1/user2) according to the input source.
  • Three preset gamma tables are selectable and can be customized.
  • Built-in test signal and self-diagnosis function warns of problems with the unit.
  • The DLA-QX1G can accept input signals with horizontal frequencies from 31.5 kHz to 135 kHz and vertical frequencies from 48 Hz to 120 Hz, as well as HDTV vertical frequencies of 24 Hz and 30 Hz.
  • HDTV signals of 720P, 1080/60i/50i, 1080/24sF. 1080/24P/30P can be projected with full resolution.
  • Two optional HDTV input boards
    The HD analog video input card converts interlaced HDTV signals to progressive signals. The HD-SDI input card converts HDTV signals to digital signals with less degradation.
  • Two optional zoom lenses & two short-focus fixed lenses
  • When two DLA-QX1Gs are stacked, brightness of 14,000 ANSI lumens can be obtained.
  • Multi-screen projection
    As the DLA-QX1G projector's QXGA resolution is four times that of XGA, it is possible to set up a four-screen native XGA system.
  • In addition to the provided RGB analog input card, two optional HDTV input cards are available. The HD analog video input card provides compatibility with legacy analog HDTV devices and includes an on-board de-interlacer for interlaced HDTV sources. The HD-SDI input card allows a convenient, industry standard, direct digital to digital input for HD-SDI sources.
  • Supplied accessories
    *The remote control lets you operate the DLA-QX1G from a distance. For greater reliability, you can also connect this remote control directly to the DLA-QX1G with the provided 15-m cable.
    *Detachable handles
SPECIFVATIONS
Image device 3 D-ILA® (1.3 inches diagonal)
Projection lens
GL-MQ1023SZG
GL-MQ1020ZG
GL-MQ1015SG
GL-MQ1010G 		(Option)
3 to 7:1 zoom, ±50% vertical/±30% horizontal shift
2.1 to 4.8:1 zoom
1.5:1 fixed, ±50% vertical/±30% horizontal shift
1:1 fixed, on axis
Brightness 7,000 ANSI lumens
Native resolution 2,048 x 1,536 pixels (4:3 aspect ratio)
Contrast ratio Greater than 1000:1 (sequential)
Scan frequency Horizontal: 31.5 to 135 kHz
Vertical: 24 Hz, 25 Hz, 30 Hz, 48 Hz to 120 Hz (24 Hz and 30 Hz for HDTV)
Input signal RGB analog �\ RGBHV �\ VGA thru QXGA (progressive only)
HDTV analog �\ Y, Pb, Pr (Option)
HD-SDI �\ HDTV 24P, 30P, 60i (Option)
Input 3 input module slots
RS-232C (mini D-sub 9-pin) x 1
Wired remote control (stereo mini 3.5 dia.) x 1
Output RS-232C (mini D-sub 9-pin) x 1
Screen size(width)
3 to 7:1 zoom


2.1 to 4.8:1 zoom
1.5:1
1:1

Wide: 1.7 m to 12.2 m (67-inch to 40 ft)
Tele: 1.45 m to 12.2 m (57-inch to 40 ft)
Wide: 2.44 m to 12.2 m (96-inch to 40 ft)
Tele: 1.83 m to 12.2 m (72-inch to 40 ft)
1.45 m to 7.93 m (57-inch to 26 ft)
1.45 m to 7.32 m (57-inch to 24 ft)
Throw distance
3 to 7:1 zoom
2.1 to 4.8:1 zoom
1.5:1
1:1
5.0 m to 84.2 m (16'5" to 276'3")
5.1 m to 59.2 m (16'9" to 194'3")
1.7 m to 12.3 m (5'7" to 40'4")
1.2 m to 7.9 m (3'11" to 25'11")
Lamp 2 kW, Xenon
Power consumption 2,800 W
Power requirement 200 - 240 V, 50/60 Hz AC (single phase)

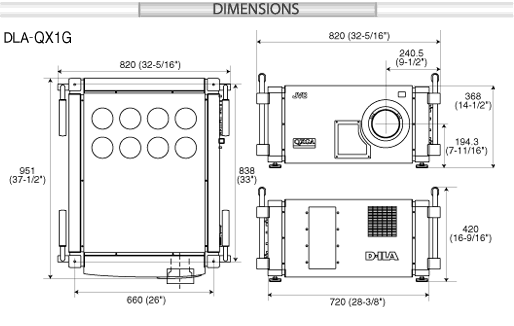

Dimensions (WxHxD) 720 x 368 x 951 mm (28-3/8" x 14-1/2" x 37-1/2") excluding lens/handle
Weight 85 kg (187.4 lbs.) excluding lens/handle
