| Image
device |
3 D-ILA®
(0.9 inches diagonal) |
| Projection
lens |
|
|
GL-M2920ZG |
2:1 to 3:1 zoom,
50% off axis |
| |
GL-M2930SZG |
2.9:1 to 5.5:1 zoom,
30% to 55%, manual shift |
| |
GL-M2915SG |
1.5:1 fixed, 30%
to 55%, manual shift |
| |
GL-M2910G |
1:1 fixed, 0% on
axis |
| Brightness |
2,000 ANSI lumens |
| Native
resolution |
1,365 x 1,024 pixels
(full coverage of SXGA (1,280 x 1,024) graphics (SXGA, XGA, SVGA,
VGA)) |
| Source
resolution |
Up to 1,600 x 1,200
(compression of UXGA) |
| Scan
frequency |
Horizontal: 15
to 105 kHz
Vertical: 50 to 100 Hz |
| Input |
Analog RGB x 2
(D-sub 15 pins (female) x 1, R, G, B, H, V x 1)
Y/C separated x 1
Composite x 1
Component x 1 (Y/R-Y/B-Y, Y/PB/PR)
Audio x 1 |
| Output |
PC monitor: D-sub
(female) |
| Screen
size (width) |
|
| |
2:1
to 3:1 zoom |
Wide: 128mm to 1,059mm
(4.20 ft to 34.74 ft) Tele: 85mm to 701mm (2.79 ft to 22.99 ft) |
| |
2.9:1
to 5.5:1 zoom |
Wide: 163mm to 1,036mm
(5.35 ft to 33.98 ft) Tele: 81mm to 549mm (2.66 ft to 18.01 ft)
|
| |
1.5:1 |
122mm to 305mm (4.00
ft to 10.00 ft) |
| |
1:1 |
81mm to 406mm (2.66
ft to 13.32 ft) |
| Throw distance |
|
|
2:1 to 3:1 zoom |
2.5 m to 20 m (8.2
ft to 65.6 ft) |
|
2.9:1 to 5.5:1 zoom |
4.52 m to 29.87 m
(14.83 ft to 98 ft) |
|
1.5:1 |
1.76 m to 4.50 m
(5.77 ft to 14.76 ft) |
|
1:1 |
0.77 m to 4.03 m
(2.53 ft to 13.22 ft) |
| Lamp |
550 W, Xenon |
| Audio |
Built-in monaural
speakers (1 W) |
Power
consumption |
850 W |
| Power
requirement |
100 - 120 V, 50/60
Hz AC (U type)
200 - 240 V, 50/60 Hz AC (E type) |

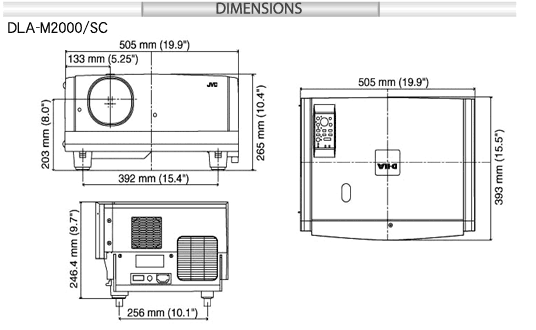

Dimensions
(WxHxD) |
505 x 265 x 393 mm
(19.9" x 10.4" x 15.5") excluding lens |
| Weight |
15.6 kg (34.3 lbs.)
excluding lens |
