High resolution images with a total of
3.3 megapixels
DLA-HX1 is equipped with three reflective 1.1-megapixel
WXGA-PLUS 16:9 (1400�~788) D-ILA®
chips that produce the high native resolution. |
|
True
black reproduction
D-ILA technology can reproduce black that is
truly black, so it can display a wide range of intermediate
tones - something that is not usually possible with conventional
LCDs. |
|
Superior
colour reproduction
DLA-HX1 has optical engine which produces rich,
natural colours with smooth gradations and low noise. Colour
temperature is set at 6500K, providing optimal cinema reproduction.
D-ILA's exclusive Analogue Gradation technology produces highly
accurate gradations with low noise, particularly in darker
areas of less than 20% brightness. |
|
JVC's
original D.I.S.T. (Digital Image Scaling Technology)
D.I.S.T. increases image information relative
to the number of pixels to provide high-definition, smooth
images�DEven on a large screen, the images look silky smooth
with enhanced depth and presence, while small details are
reproduced clearly. |
|
High-performance projection |
- DVI-D plug and play (HDCP)
- Full signal input capability (HDTV format compatibility):
480p, 720p, 1080i (60, 50), 1080p (24PsF, 25PsF, 30PsF), 1035i
(HDTV)
- H/V digital keystone correction (horizontal: ±10 degrees,
vertical: ±30 degrees)
- Easy-to-change lamp and low running cost
|
|
 |
| SYSTEM |
| Image device |
3-chip D-ILA®
(0.7-inch diagonal) |
| Projection
lens |
Zoom lens
(2:1 - 2.6:1, manual zoom/manual focus,
53.3% offset) |
| Brightness |
1000 ANSI lumens |
| Resolution |
1400 x 788
pixels (1.1M pixels) |
| Aspect Ratio |
16:9 |
| Contrast |
800:1 |
| Scanning
Frequency |
Horizontal:
15 - 120kHz
Vertical: 24, 25, 30, 50 - 120Hz |
| Screen Size
(width) |
0.8m - 6.1m
(2.6ft - 20ft) |
| Throw
Distance |
1.6m - 12.1m
(5.1ft - 39.8ft) |
| Lamp |
250W, NSH (Model
No. BHL5006-S) |
| Still |
Freeze |
| Colour Temperature |
6500K/HIGH/user
selectable |
| On-screen
Display |
8 languages:
Japanese, English, German, Spanish, Italian, French, Portuguese,
and Korean |
| Speaker |
1W |
| INPUT SIGNALS |
|
| Component |
Y, PB/B-Y,
PR/R-Y, 480P, 720P, 1080i, 1080/24PsF, 25PsF, 1035i (HDTV) |
| Composite |
NTSC, PAL, SECAM,
NTSC4.43 |
| RGB/RGBHV |
VGA, SVGA,
XGA, WXGA+ (1400 x 788), SXGA/SXGA+ (resized to 16:9 aspect
ratio) |
| DVI-D |
480P, 720P,
1080i, VGA, SVGA, XGA, WXGA+ (1400 x 788), SXGA/SXGA+ (resized
to 16:9 aspect ratio) |
| INPUT TERMINALS |
|
| Video |
3 sources:
BNC (Y/PB/PR, same as RGB), RCA, S-terminal |
| Digital |
1 source: DVI-D
(HDCP) |
| RGB |
2 sources:
BNC (PC2), D-sub 15-pin (PC 1) |
| Audio |
1 source: Mini
jack |
| CONTROL TERMINALS |
|
| Serial Input |
1 source (RS-232C,
D-sub 9-pin) |
| Serial
Output |
1 source (RS-232C,
D-sub 9-pin) |
| Remote |
1 source (wired
remote mini jack) Discreet IR codes |
| Screen Trigger |
1 source (12V
100mA) |
| GENERAL |
|

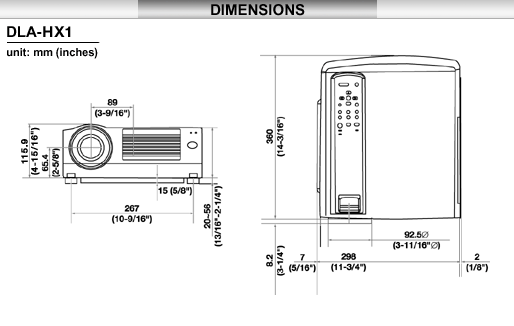

| Dimensions
(WHD) |
298 x 134 x
360mm (11-3/4" x 5-1/4" x 14-3/16") |
| Weight |
5.9kg (13 lbs)
|
| Power Requirement |
100 - 240V
AC, 50/60Hz |
| Power Consumption |
340W |
|
| EMC Class B approved |
|
|
